KM-24120

Väggfäste, max 50kg
112090
I lager
Produktfråga

Vad vill du veta om KM-24120?

Skicka

Beskrivning

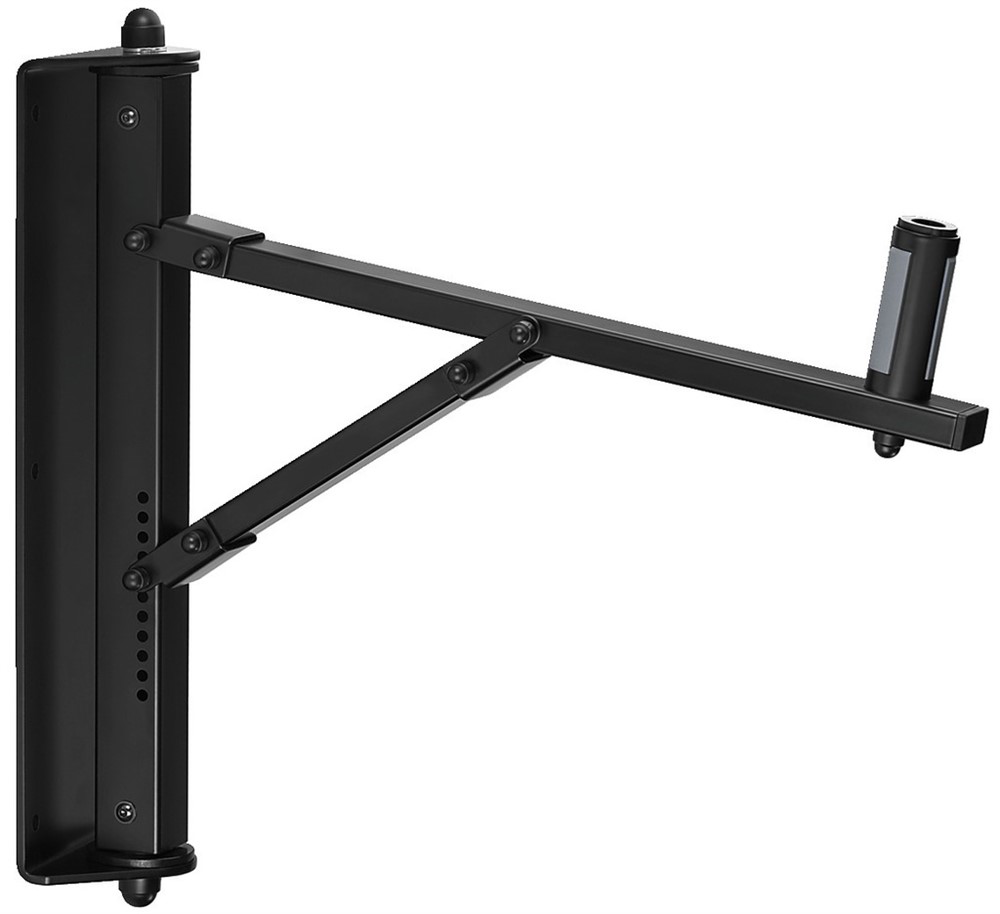

Wall bracket for PA speaker systems, with patented expanding mandrel to ensure a fixed and low-resonance connection between the wall bracket and PA speaker system via movable plastic splints.
  • Black lacquered steel version
  • Movable (approx. 180°) and tiltable (approx. 22°), tilting angle adjustable in 11 steps
  • Mandrel, e.g. for accepting PA speaker systems with stand insert as well as carrier plates and adapter plates with standard diameter

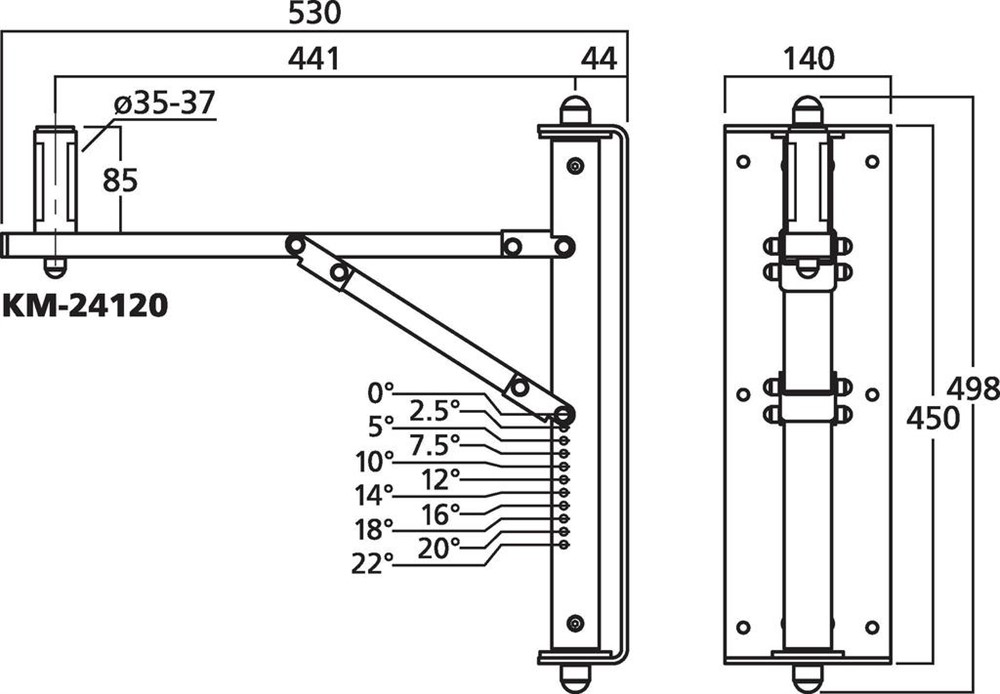

  • Distance between mandrel and mounting plate: 420 mm
  • Load capacity: 50 kg
  • Weight: 6.2 kg
  • GS approved
  • Supplied in individual parts, instructions for assemby are included
Safety Note
To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!


Descriptionwall bracket
Suitable forPA speaker systems
Featuresmandrel
Materialsteel
Colourblack
Max. load/centr. weight concentr.50 kg
Mounting flange140 x 450 mm
Mounting plate-
Mounting thread-
VESA standard-
Pivoting-
Tilting-
Tube diameter-
Adjustable height-
Length530 mm
Storage dimensions-
Dimensions-
Weight6.36 kg
Special feature-
