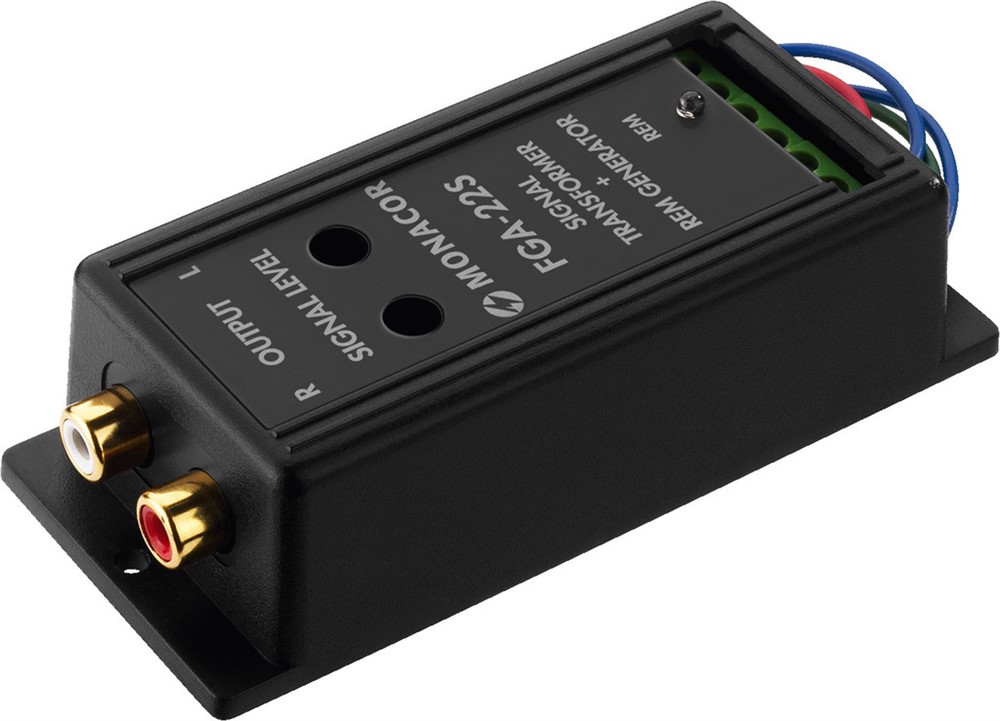

FGA-22S

Hög-lågnivåtrafo
067550
I lager
Produktfråga

Vad vill du veta om FGA-22S?

Skicka

Beskrivning

Transformer with switching voltage generation, for connecting speaker outputs of a car radio to the line inputs of an amplifier.
  • For the operation with car audio systems without switching voltage output. Also suitable for the connection of units in locations without direct access to the switching voltage of the car radio (e.g. in the boot).
  • The switching voltage (REM) is generated independently of the audio signal, also when the music stops
  • Internal ground separation
  • Screw terminals, gold-plated RCA jacks
  • Max. input power: 20 WRMS
  • Input/output impedance: 20 kO/10 kO
  • Frequency range: 20-30,000 Hz
  • THD: < 0.01 %
  • Power supply: 12 V DC current /25 mA
  • 43x27x100 mm, 70 g


Descriptiontransformer
Frequency range20-30,000 Hz
Control range-
Control frequencies-
Input signal-
Input sensitivity-
Input impedance20 kO
Output signal-
Output impedance10 kO
Gain-
Phantom power-
Compression-
Gate ratio-
Crossover frequency-
High-pass filter-
Low cut-
Transmission ratio-
S/N ratio-
Channel separation-
THD< 0.01%
Admiss. ambient temp.0-40 °C
Power supplyDC 12 V/25 mA
Dimensions43 x 27 x 100 mm
Weight60 g
Inputsscrew terminals
Outputs1 x RCA L/R
Other features-

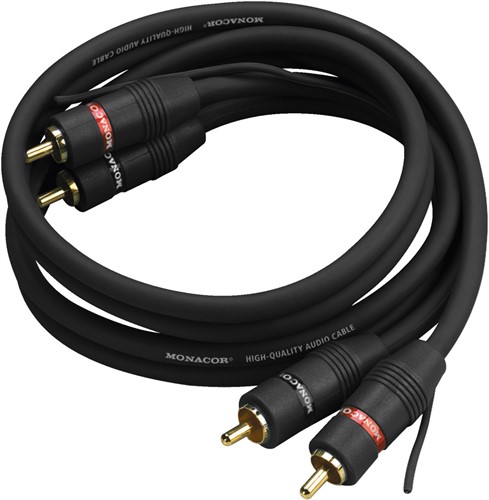

AC-150/SW
