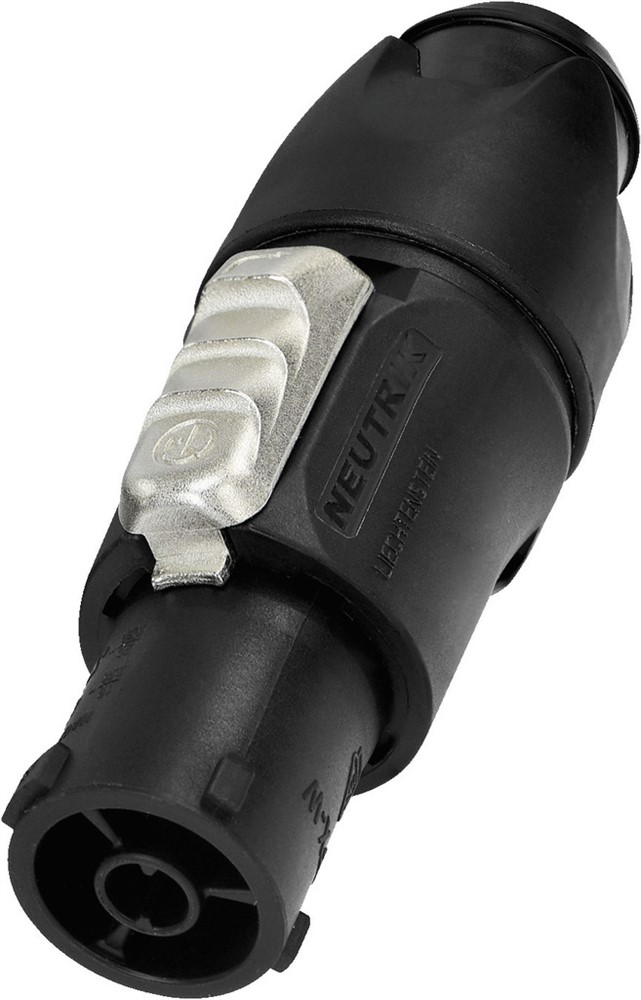

NEUTRIK POWERCON True1 TOP inline jack
- Complies with safety requirements of IEC 60320, VDE-certified
- For mains connection up to ? 250 V/16 A
- Connections for ground, phase and neutral conductor, connector can be connected under load
- Self-extinguishing according to UL 94V-0
- Protection classs IP65
| Description | inline jack |
| Type | NEUTRIK POWERCON TOP |
| Quantity | 1 |
| Features | latching device |
| Colour/colour coding | black |
| Power rating | ∿ 250 V/16 A |
| Insulating resistance | > 100 MO |
| Dielectric strength | DC 4 kV/∿ 2.8 kV |
| Certification | UL, VDE |
| Pole number | 2+PE |
| Cable inlet | 6-12 mm |
| Suitable cable cross section | - |
| Connection | - |
| Strain relief | yes |
| Cable bending protection | - |
| Stereo | - |
| Mono | - |
| Switches | - |
| Material | silver-plated bronze contacts, plastic |
| Central fixing | - |
| Contact type | - |
| No. of contacts | - |
| Contact width | - |
| Contact distance | - |
| Admiss. ambient temp. | -30-+80 °C |
| Dimensions | Ø 26.5 mm x 77-80 mm |
| Diameter | - |
| Length | - |
| Weight | 33 g |
| Other features | - |
