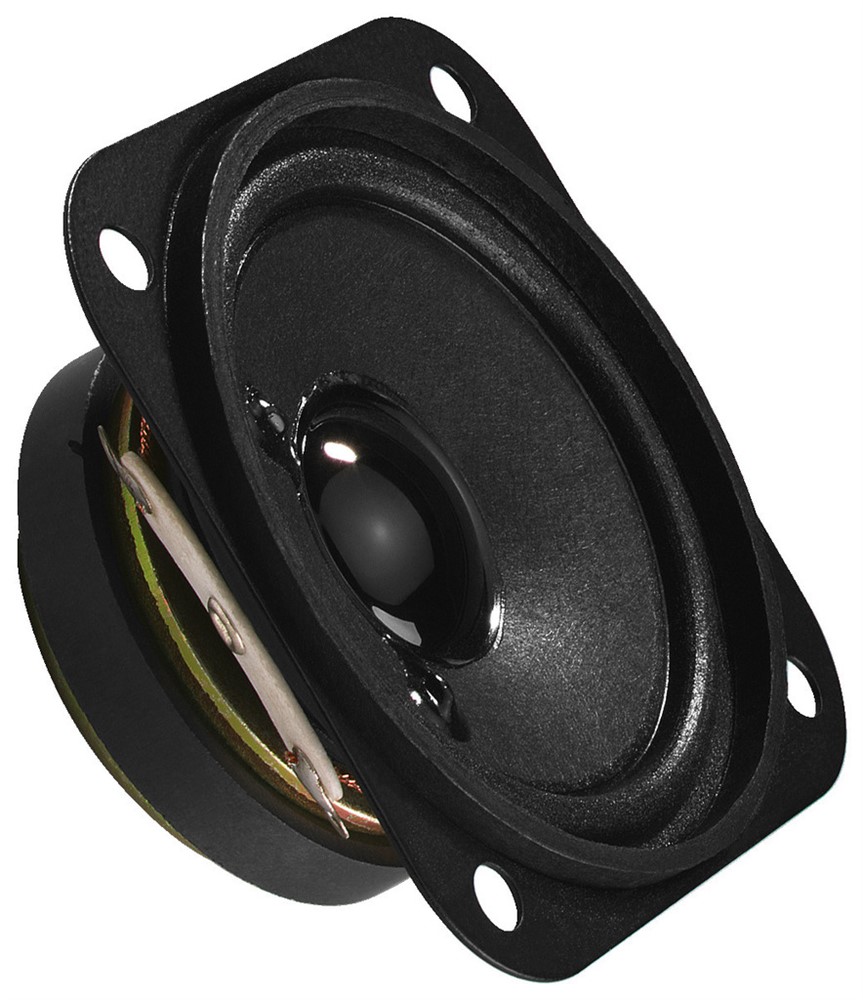

SP-6/4SQ

2", 3Wrms, 4ohm
103540
I lager
Produktfråga

Vad vill du veta om SP-6/4SQ?

Skicka

Beskrivning

Universal speaker, 5 WMAX, 3 WRMS, 4 Ohm
  • For standard applications in the miniature speaker range
  • Sound pressure from approx. 280 Hz on



Impedance (Z) 4 Ohm
Transmission method -
Frequency range f3-16,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 3 W
Peak music power output (MAX) 5 W
Sensitivity -
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -

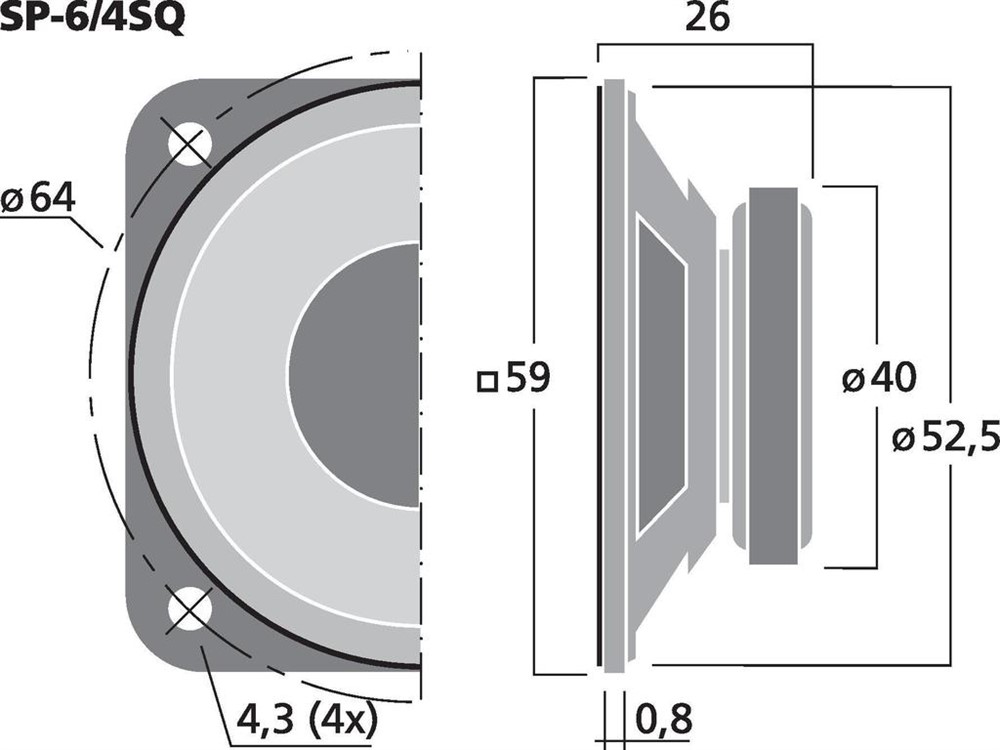

Magnet diameter Ø 40 mm
Mounting cutout Ø 51 mm
Mounting depth 25.2 mm
Mounting hole diameter Ø 64 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 59 x 59 x 26 mm
Outside diameter -
Width 59 mm
Height 59 mm
Depth 26 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 83 g
Packing unit 1
Type of speaker 2"
