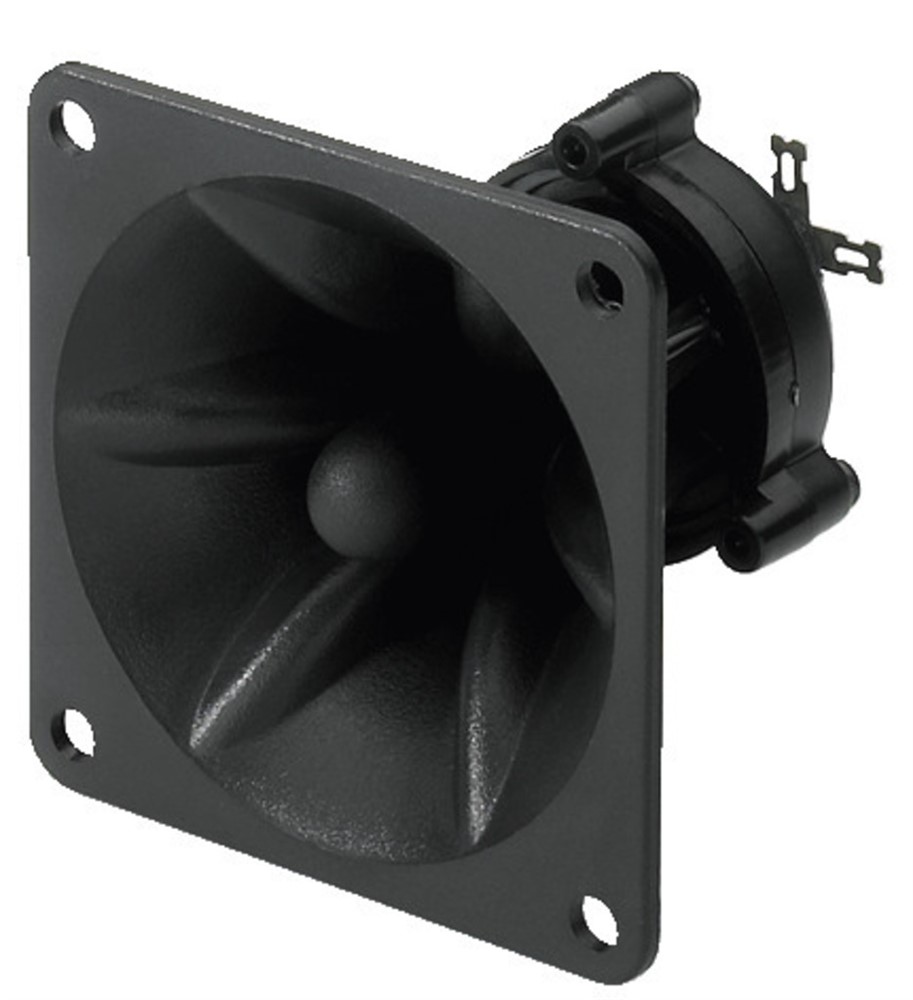

MPT-005

Piezohorn, 4,000-20,000 Hz
110480
I lager
Produktfråga

Vad vill du veta om MPT-005?

Skicka

Beskrivning

Piezo tweeter


Impedance (Z)> 1,000 O
Transmission method-
Frequency range4,000-20,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)-
Peak music power output (MAX)115 W (8 O system)

225 W (4 O system)

Sensitivity94 dB/W/m
Max. rated SPL-
Max. voltage∼ 30 V
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-

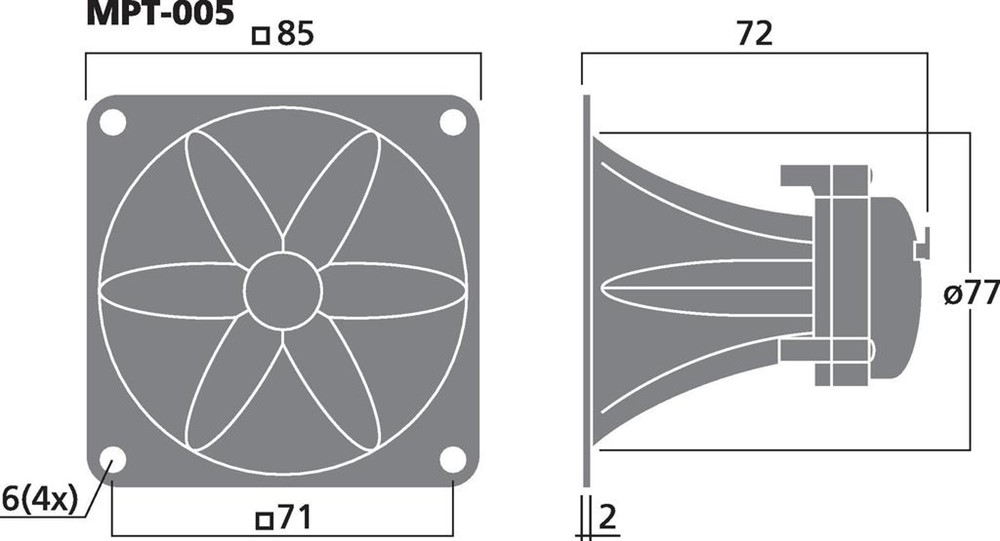

Mounting cutoutØ 77 mm
Mounting depth72 mm
Mounting hole diameter-
Hole spacing X-axis71 mm
Hole spacing Y-axis71 mm
Dimensions85 x 85 x 72 mm
Outside diameter-
Width85 mm
Height85 mm
Depth72 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.055 kg
Packing unit1
Type of speaker-
