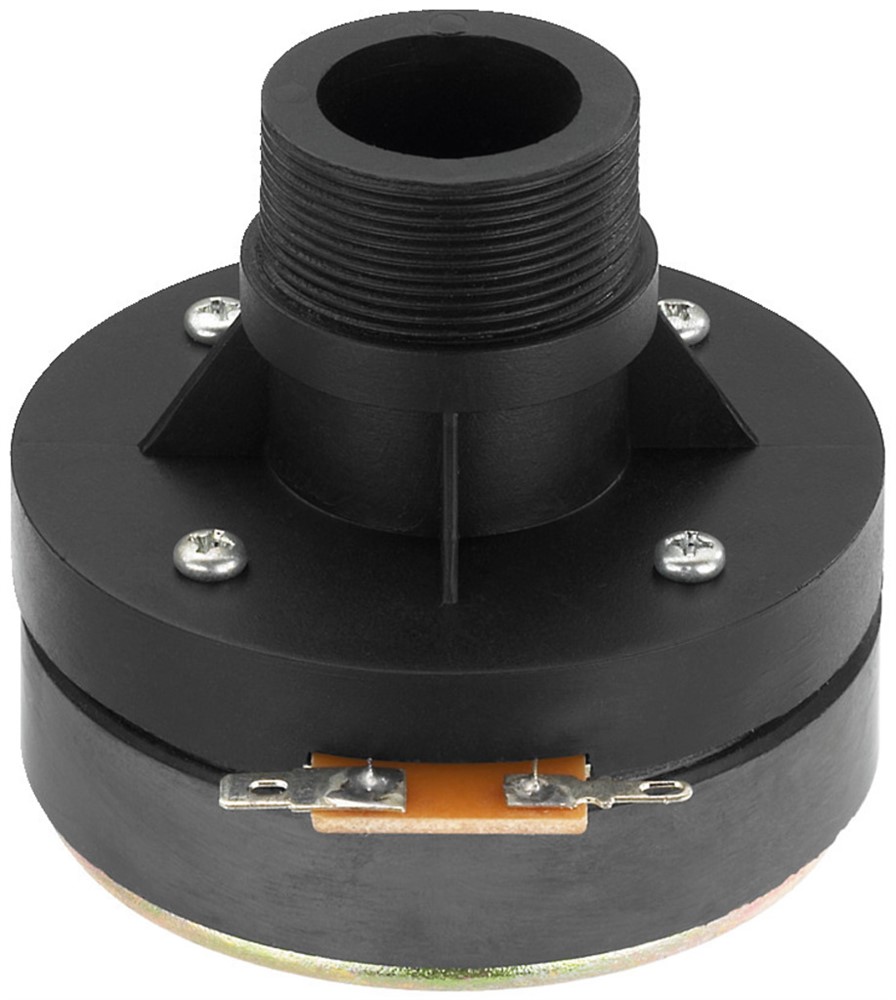

MRD-80

25mm, 30Wrms, 8ohm
104360
I lager
Produktfråga

Vad vill du veta om MRD-80?

Skicka

Beskrivning

PA horn driver, 60 WMAX, 30 WRMS, 8 Ohm
  • PA tweeter driver with standard 35 mm (1 3/8 ") thread
  • Very compact size
  • High efficiency
  • Suitable for the horns MRH-120, MRH-83 and MRH-80



Impedance (Z) 8 Ohm
Transmission method -
Frequency range fx-17,500 Hz
Resonant frequency (fs) 2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 5,000 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
Sensitivity 107 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 25.5 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 80 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -

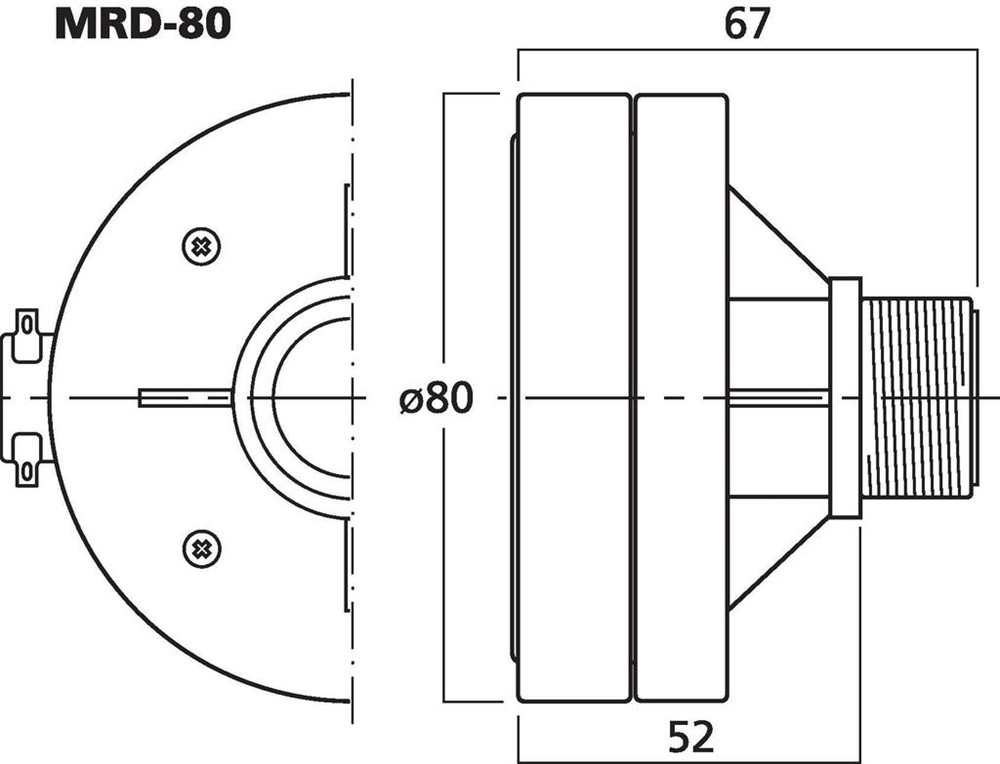

Dimensions Ø 80 mm x 67 mm
Outside diameter Ø 80 mm
Width Ø 80 mm
Height -
Depth 67 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.71 kg
Packing unit 1
Type of speaker -

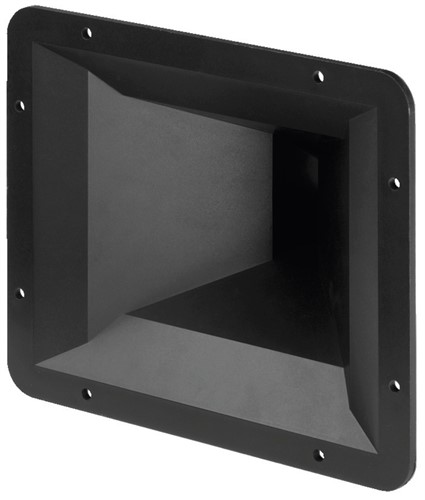

MRH-83
MRH-83
120470
Välj

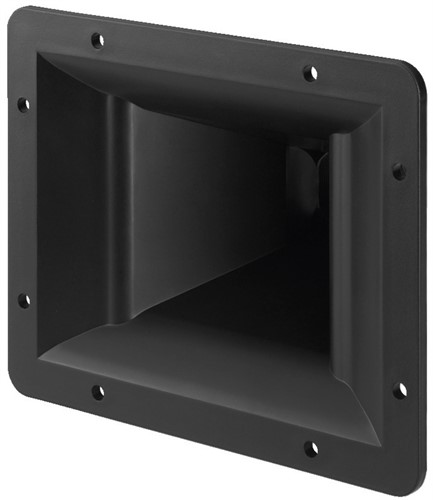

MRH-80
