DT-19SU

20mm, 50Wrms, 8ohm
101970
I lager
Produktfråga

Vad vill du veta om DT-19SU?

Skicka

Beskrivning

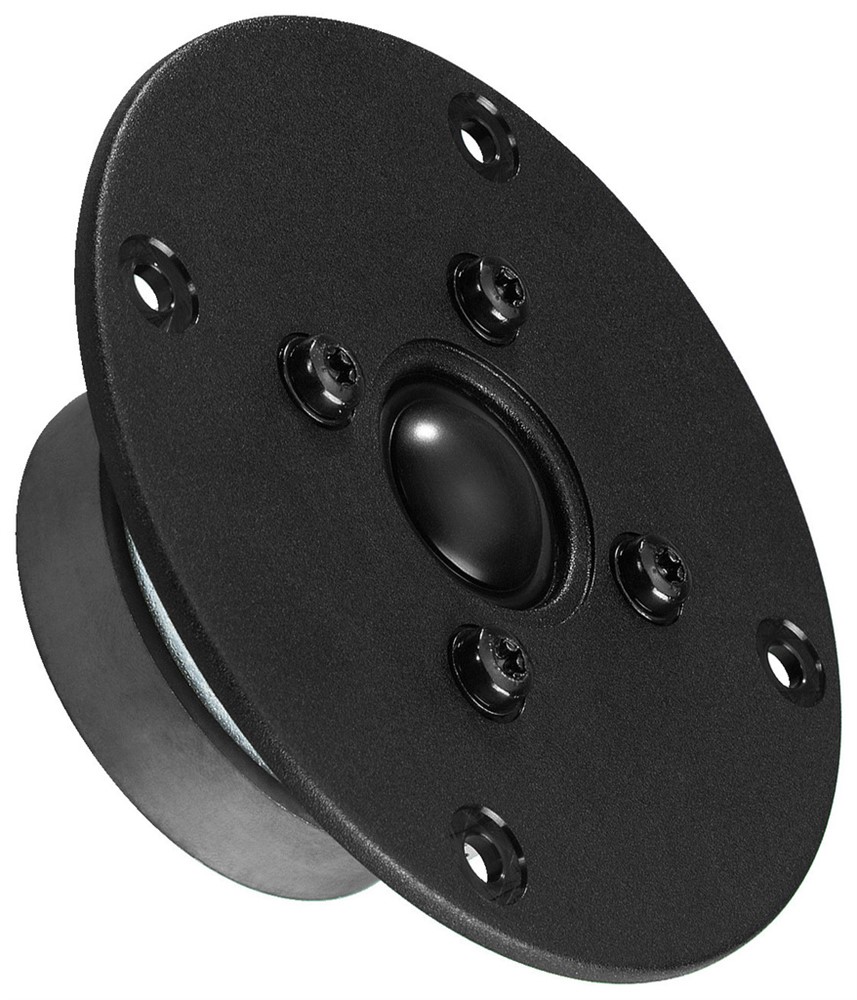

Hi-fi dome tweeter, 80 WMAX, 50 WRMS, 8 Ohm
  • 19 mm soft dome, laminate technology
  • Double magnet
  • Robust plastic front
  • Low cone weight
  • Optimum brilliance
  • For hi-fi applications of high requirements, especially in 3-way systems



Impedance (Z) 8 Ohm
Transmission method -
Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 80 W
Sensitivity 91 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 19 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -

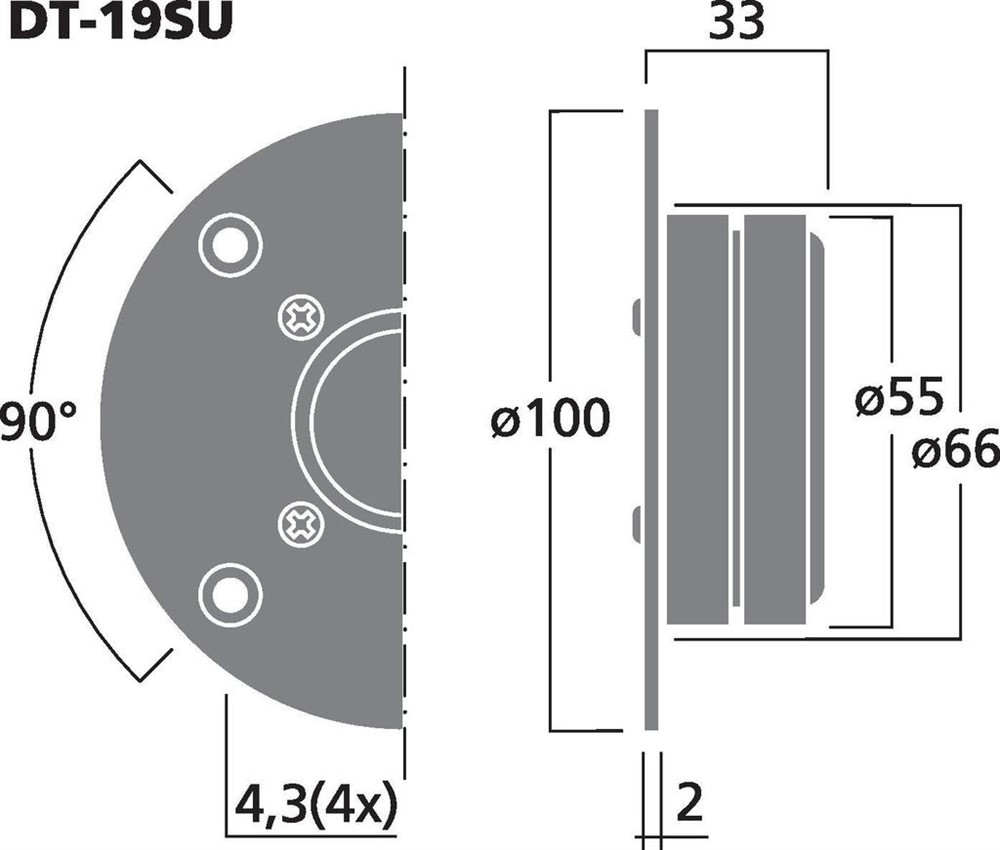

Magnet diameter Ø 55 mm
Mounting cutout Ø 66 mm
Mounting depth 33 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 100 x 33 mm
Outside diameter Ø 100 mm
Width Ø 100 mm
Height -
Depth 33 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.397 kg
Packing unit 1
Type of speaker -

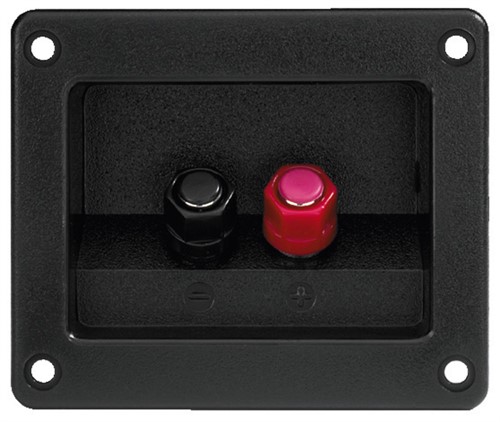

ST-955
