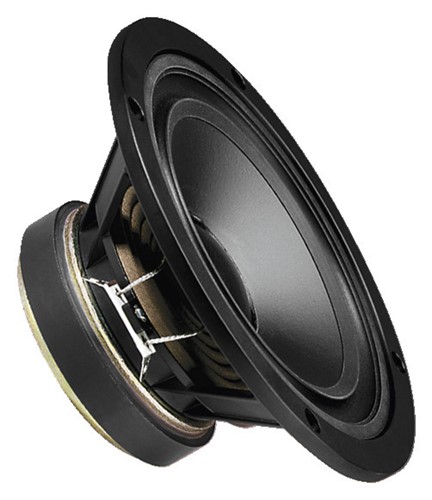

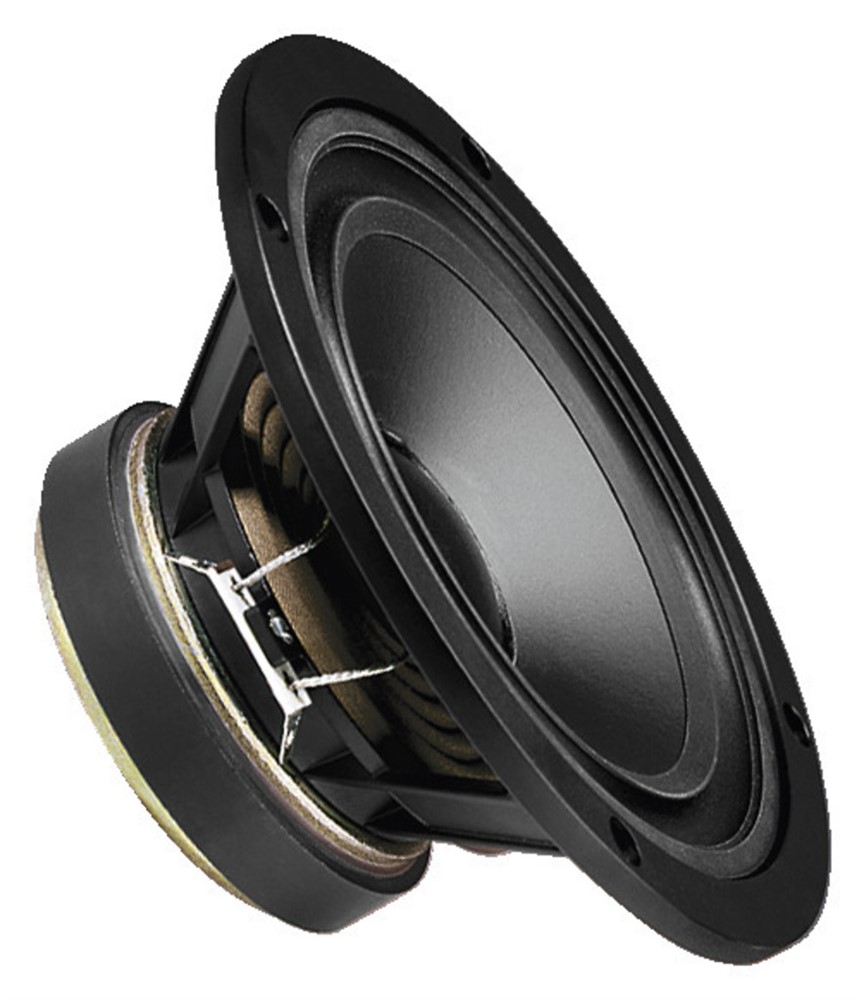

Hi-fi bas-mellanregisterhögtalare, 80Wmax, 50WRMS, 8Ohm
- Högtalare av mycket hög kvalitet med omfattande utrustning.
- Rund aluminiumgjuten korg med försänkta skruvar.
- Omvänd gummiupphängning.
- Borrad polkärna.
- Kon med utmärkt dämpning.
- Exceptionellt djup basåtergivning för alla bas och bas-mellanregister tillämpningar.
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |

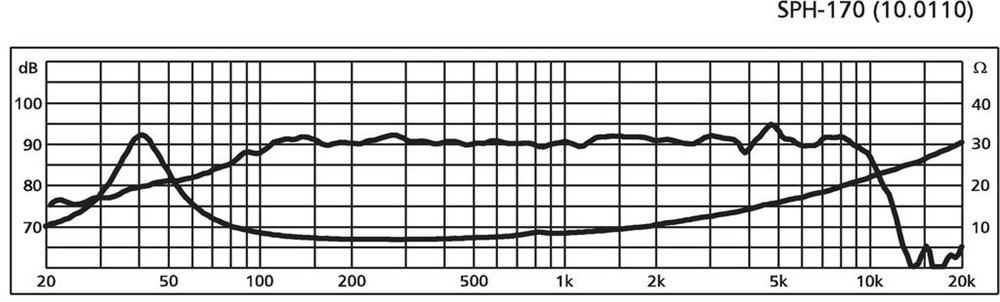

| Frequency range |
f3-5,000 Hz |
| Resonant frequency (fs) |
38 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
50 W |
| Peak music power output (MAX) |
80 W |
| Sensitivity |
90 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
1.43 mm/N |
| Moving mass (Mms) |
12.5 g |
| Mech. Q factor (Qms) |
2.38 |
| Electr. Q factor (Qes) |
0.55 |
| Total Q factor (Qts) |
0.44 |
| Equivalent volume (Vas) |
37 l |
| DC resistance (Re) |
6.2 O |
| Force factor (BxL) |
5.90 Tm |
| Voice coil induct. (Le) |
0.45 mH |
| Voice coil diameter |
Ø 25 mm |
| Voice coil former |
aluminium |
| Linear excursion (XMAX) |
± 3 mm |
| Eff. cone area (Sd) |
137 cm2 |
| Magnet weight |
370 g |
| Magnet diameter |
Ø 100 mm |
| Mounting cutout |
Ø 150 mm |
| Mounting depth |
73 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |

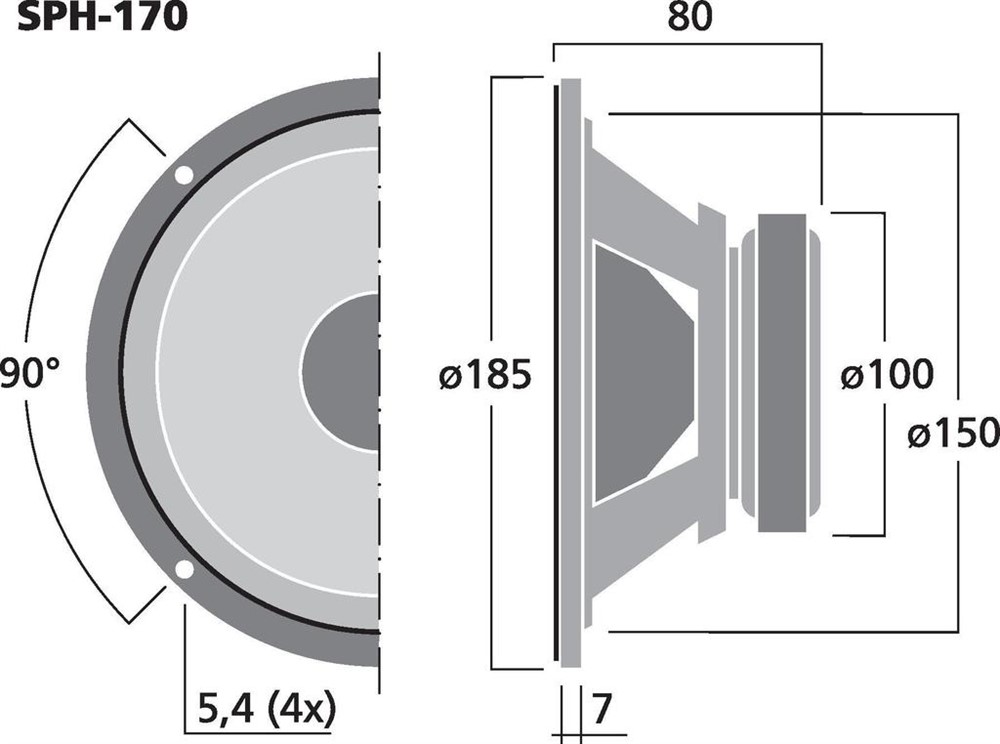

| Dimensions |
Ø 185 mm x 80 mm |
| Outside diameter |
Ø 185 mm |
| Width |
Ø 185 mm |
| Height |
- |
| Depth |
80 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
1.3 kg |
| Packing unit |
1 |
| Type of speaker |
6.75" |
