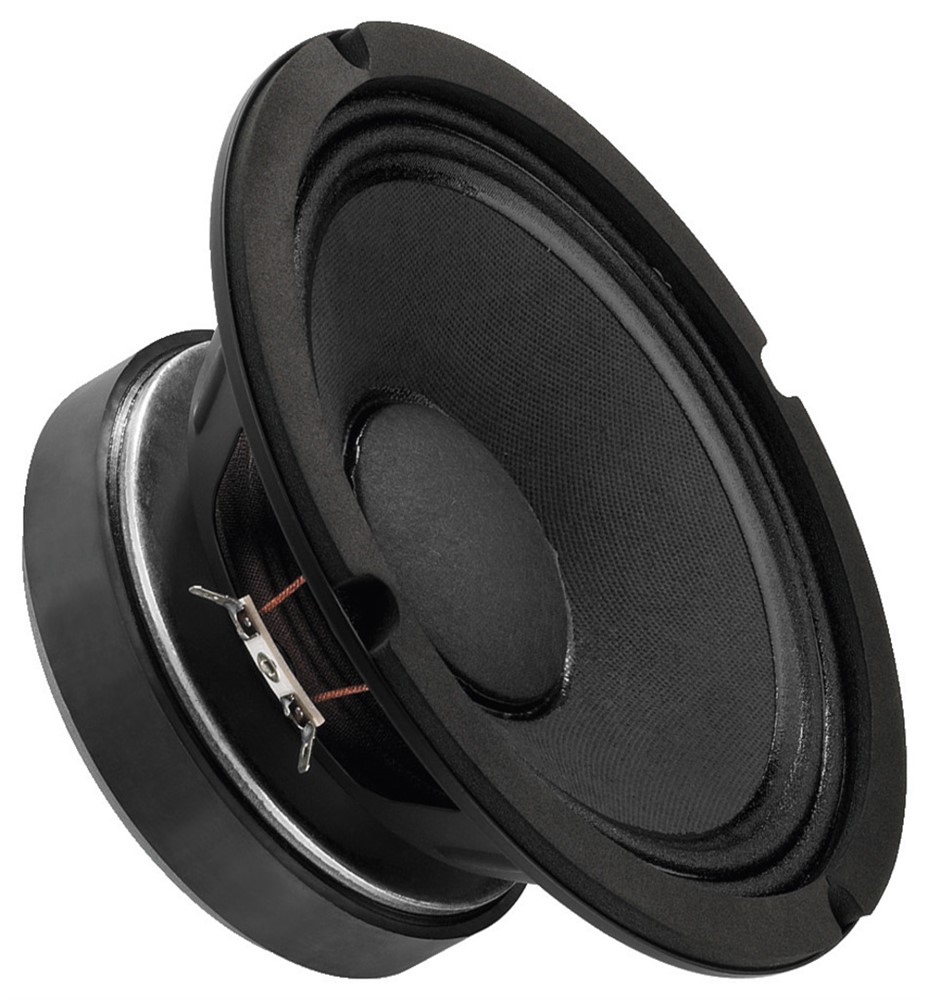

SP-8/150PA

8", 150Wrms, 8ohm
101680
I lager
Produktfråga

Vad vill du veta om SP-8/150PA?

Skicka

Beskrivning

PA bass-midrange speaker, 300 WMAX, 150 WRMS, 8 Ohm
  • Good medium efficiency
  • Wide bandwidth radiation for midrange applications



Impedance (Z) 8 Ohm
Transmission method -
Frequency range f3-8,000 Hz
Resonant frequency (fs) 88 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 150 W
Peak music power output (MAX) 300 W
Sensitivity 96 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 0.16 mm/N
Moving mass (Mms) 20 g
Mech. Q factor (Qms) 4.12
Electr. Q factor (Qes) 0.48
Total Q factor (Qts) 0.43
Equivalent volume (Vas) 12 l
DC resistance (Re) 6.9 O
Force factor (BxL) 12.60 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 50 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 1.25 mm
Eff. cone area (Sd) 219 cm2
Magnet weight 1.1 kg
Magnet diameter Ø 140 mm
Mounting cutout Ø 185 mm
Mounting depth 90 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -

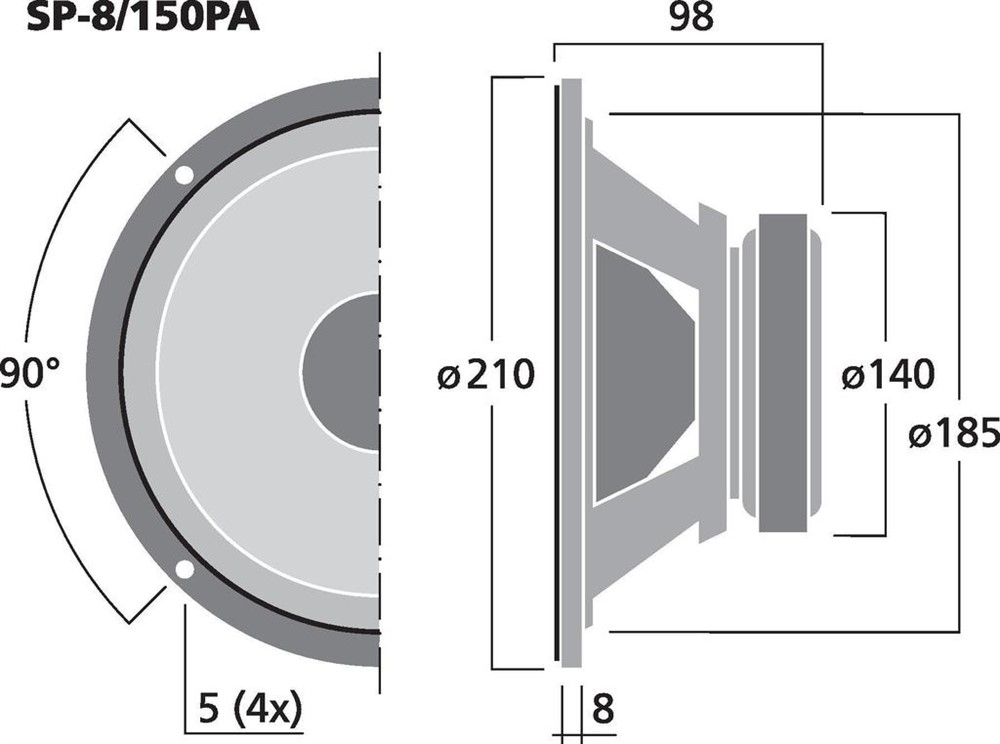

Dimensions Ø 210 mm x 98 mm
Outside diameter Ø 210 mm
Width Ø 210 mm
Height -
Depth 98 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 2.965 kg
Packing unit 1
Type of speaker 8"
