EDL-82/WS

6W, 100V, Ø100x93mm
161490
I lager
Produktfråga

Vad vill du veta om EDL-82/WS?

Skicka

Beskrivning

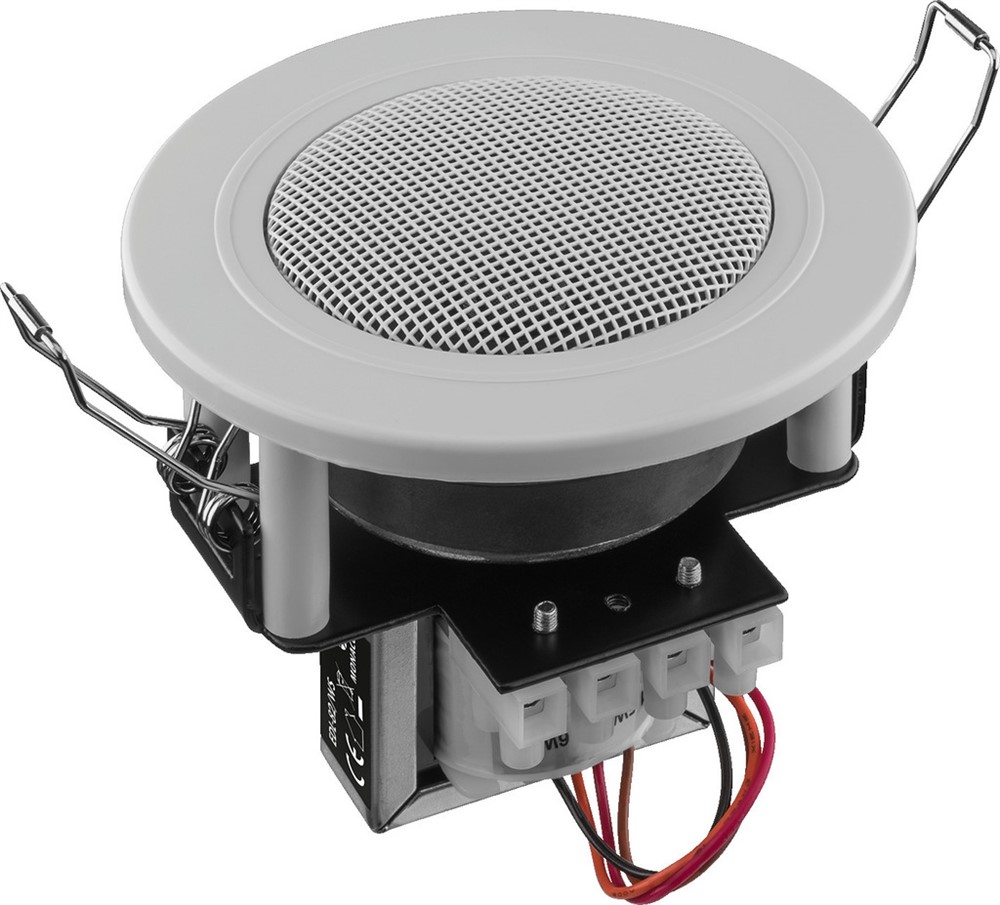

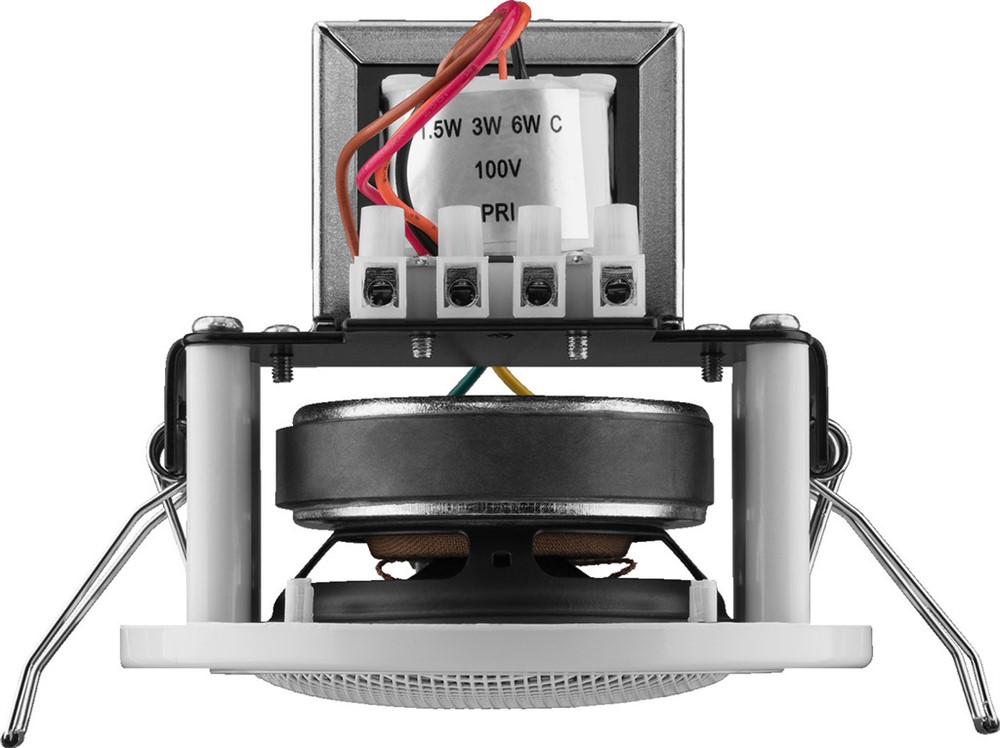

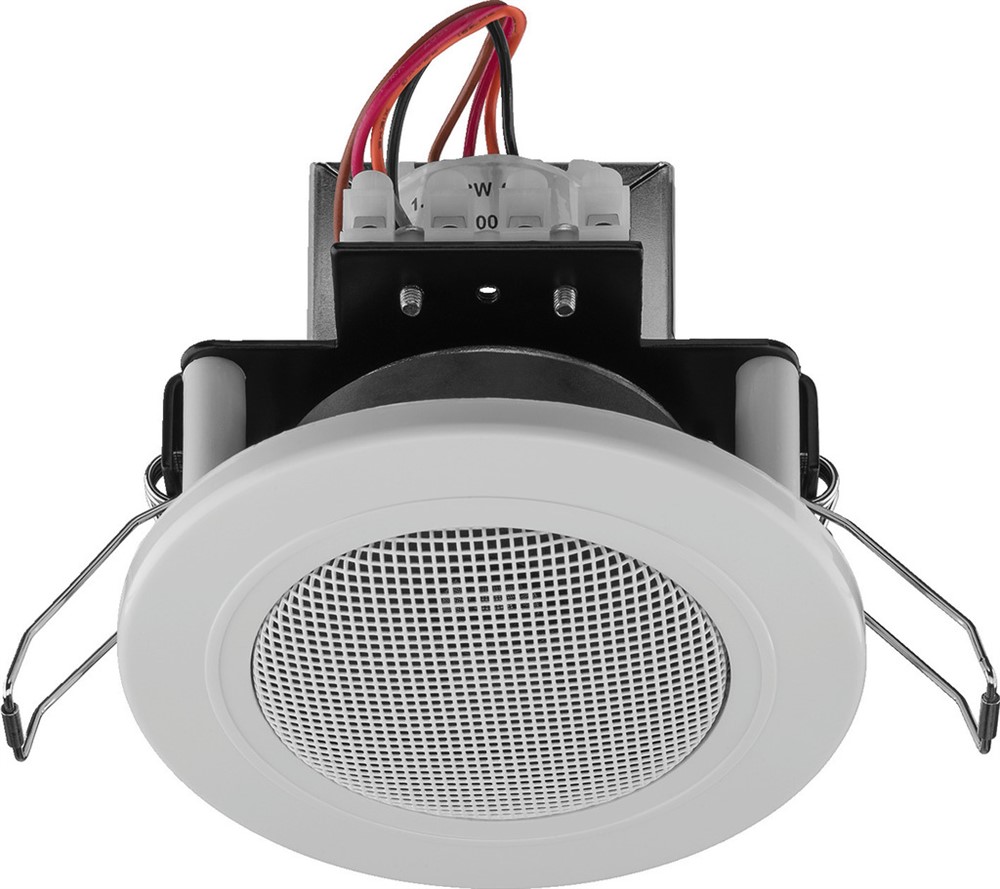

PA ceiling speaker
  • 100 V line technique
  • White cover
  • Similar design to standard flush-mounted halogen lights
  • Suitable for speech and background music, very consistent frequency response
  • Quick-mounting facility
  • Plastic housing with protective metal grille
  • Plastic material of ABS and self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 2 to 14 mm


Impedance (Z)-
Transmission method100 V
Frequency range200-20,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)6/3/1.5 W
Peak music power output (MAX)-
Sensitivity86 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-

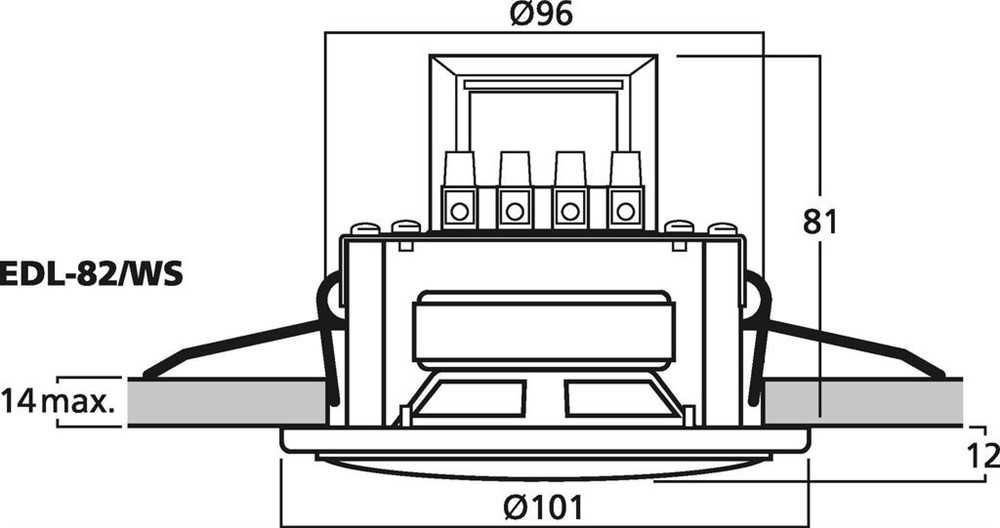

Mounting cutoutØ 96 mm
Mounting depth98 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 100 mm
Outside diameterØ 100 mm
WidthØ 100 mm
Height-
Depth93 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight635 g
Packing unit1
Type of speaker75
