Peak output power	850 W
Power rating	600 W
Power rating at 2 O	-
Power rating at 4 O	-
Power rating at 8 O	-
Power rating at 16 O	-
Power rating at 100 V	-
Power rating with 4 O bridged operation	-
Power rating with 8 O bridged operation	-
Output impedance	-
Channels	5
Zones	6
Inputs	2.5 mV/5 kO, 0.3 V/5 kO (mic/line), 0.3 V/15 kO (line), 0.775 V/10 kO (preamplifier)
Attenuation factor	-
Frequency range	55-16,000 Hz
Crossover network	-
Crossover frequency	-
Integrated limiter	-
Equalizer bass	± 10 dB/100 Hz
Equalizer midrange	-
Equalizer treble	± 10 dB/10 kHz
S/N ratio	> 70 dBA (mic), > 80 dBA (line)
Crosstalk attenuation	-
THD	< 1%
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	1,700 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC 24 V
Power supply (possible alternative)	DC 50 A
Admiss. ambient temp.	0-40 °C
Width	430 mm
Height	133 mm
Depth	352 mm
Rack spaces, RS	3
Weight	20 kg

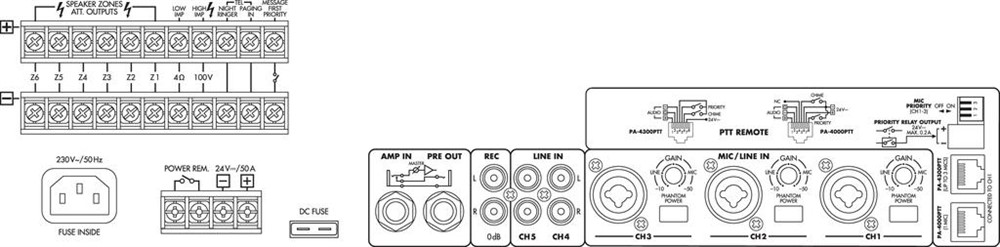

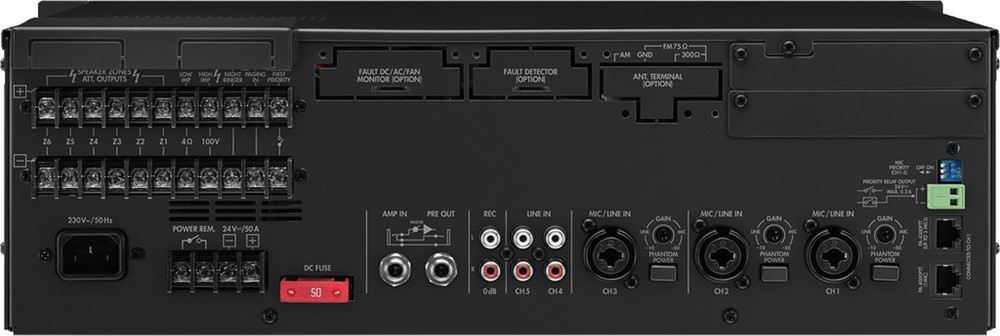

Connections	3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplifier), 1 x RJ45 (push-to-talk mic), screw terminals (telephone system), screw terminals (speakers), 1 x 6.3 mm jack (ext. amplifier), 1 x RCA

Språk

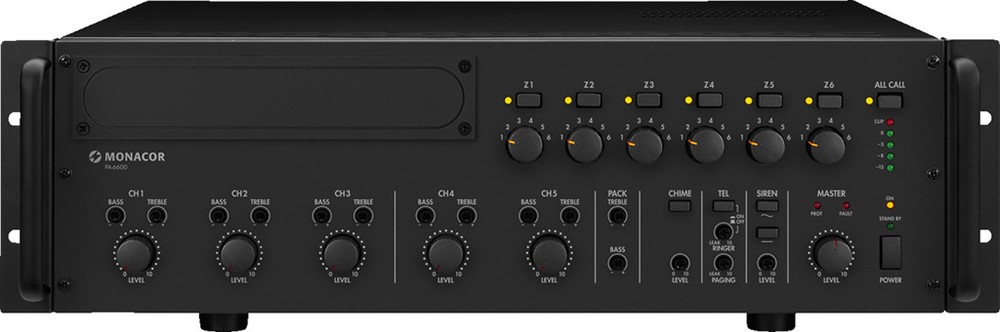

PA-6600
