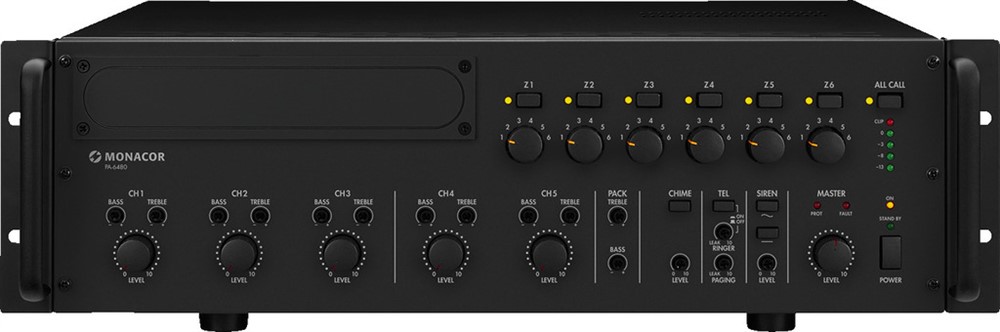

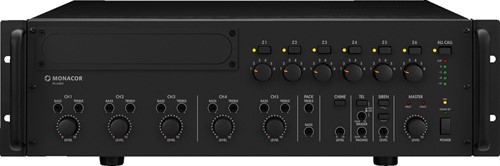

6-zone mono PA mixing amplifier- 1 x 240 WRMS (PA-6240)
- 1 x 480 WRMS (PA-6480)
- 1 x 600 WRMS (PA-6600)
- 6 zones, can be controlled individually
- Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs, regulated fan
- Insertions for various functions are available at option
- 17 V phantom power for electret microphones
- Connection for zone paging microphone PA-6000RC
- 1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option

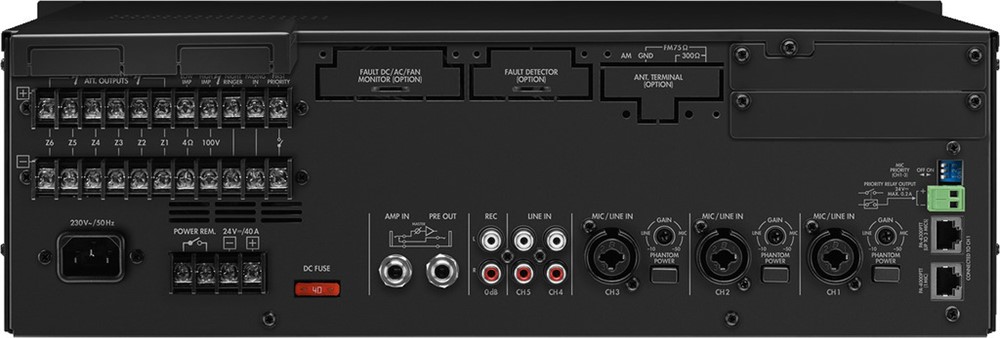

- 3 insertion facilities on the rear panel for optional modules with the following features:
- PA-6FD: fault detection
- PA-6FM: fault monitoring
- PA-6FR: anti-feedback
- Mains operation and 24 V emergency power operation
- Removable mounting brackets
PROSOUND 9/10-2007
"This unit also features good and robust mechanics, as customary by MONACOR. The PA amplifier gives a conclusive and sophisticated impression. With additional modules, it turns into a respectable system which is suitable for versatile applications."
Egenskaper
| Peak output power | 680 W |
| Power rating | 480 W |
| Power rating at 2 O | - |
| Power rating at 4 O | - |
| Power rating at 8 O | - |
| Power rating at 16 O | - |
| Power rating at 100 V | - |
| Power rating with 4 O bridged operation | - |
| Power rating with 8 O bridged operation | - |
| Output impedance | - |
| Channels | 5 |
| Zones | 6 |
| Inputs | 2.5 mV/5 kO, 0.3 V/5 kO (mic/line), 0.3 V/15 kO (line), 0.775 V/10 kO (preamplifier) |
| Attenuation factor | - |
| Frequency range | 55-16,000 Hz |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer midrange | - |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 70 dBA (mic), > 80 dBA (line) |
| Crosstalk attenuation | - |
| THD | < 1% |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,500 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 40 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 430 mm |
| Height | 133 mm |
| Depth | 352 mm |
| Rack spaces, RS | 3 |
| Weight | 19 kg |

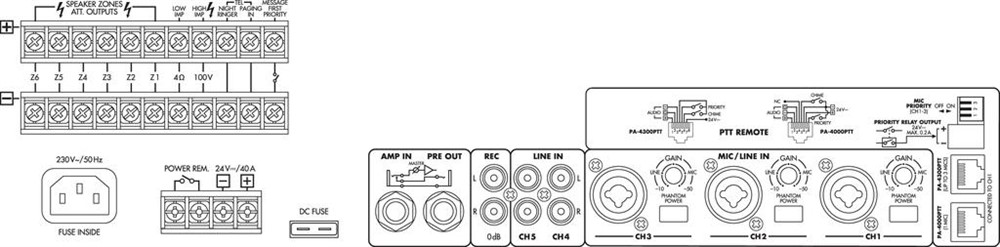

| Connections | 3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplifier), 1 x RJ45 (push-to-talk mic), screw terminals (telephone system), screw terminals (speakers), 1 x 6.3 mm jack (ext. amplifier), 1 |
