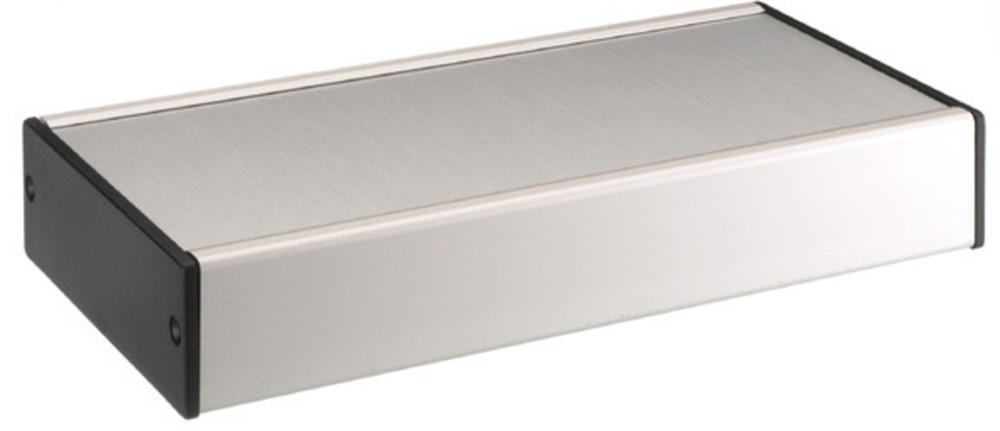

Series of Utility Cases

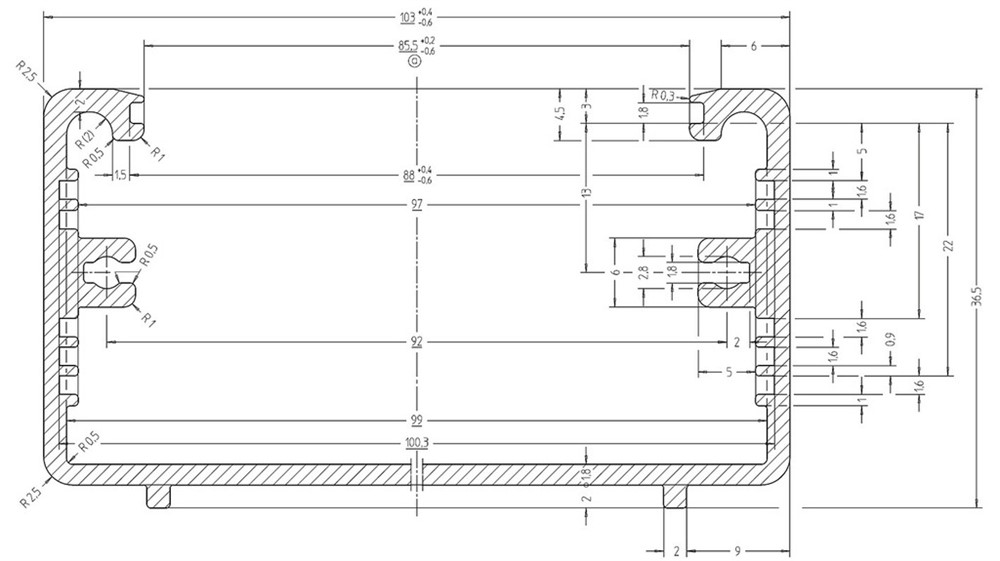

Made of extruded profile with insertion grooves for printed circuits in different heights (12/17/22 mm distance to the front panel). Exchangeable front panel with protective foil of standard 1.5 mm aluminium plate. Mat black ABS plastic side covers. The material surface is anodised and mat etched or black (SW).
Total height: 36.5 mm.
| Intended use | case |
| Material | aluminium sheet, ABS plastic |
| Dimensions | 103 x 36.5 x 207 mm |
| Width | 103 mm |
| Height | 36.5 mm |
| Length | 207 mm |
| PCB dimensions | 100 x 200 mm |
| Weight | 308 g |
