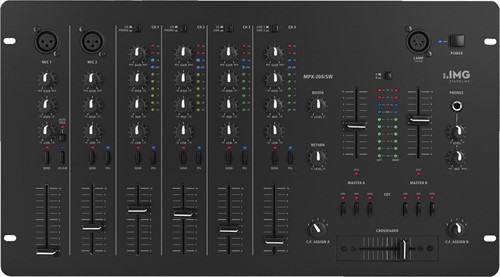

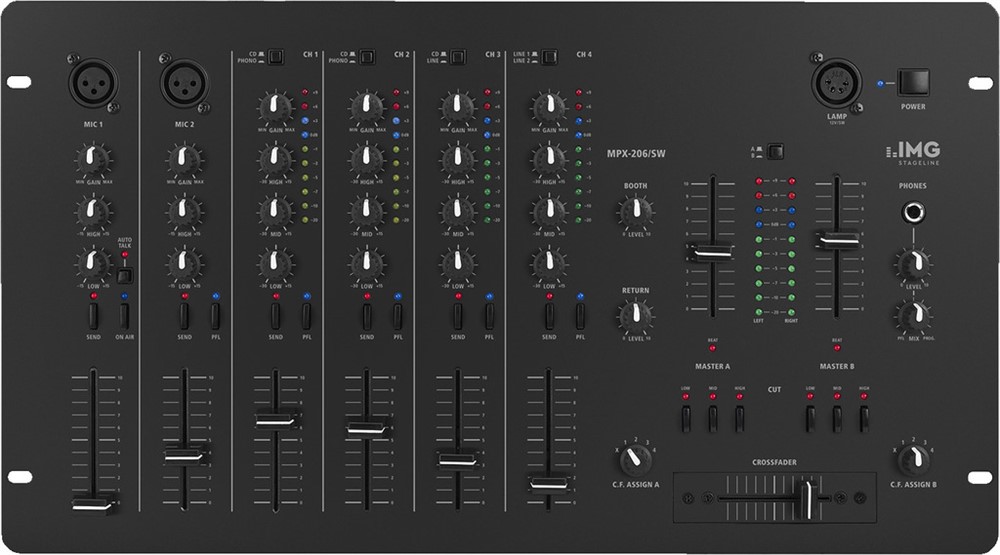

MPX-206/SW

6-Kanals Stereo DJ Mixer
202480
In stock
Product question

What would you like to know about MPX-206/SW?

Send

Description

6-channel stereo mixer
  • 4 stereo input channels, each with separate LED level display, switchable line/phono (channels 1-2) and line/line (channels 3-4), gain control, 3-way equalizer with cut function
  • 1 DJ microphone channel with switchable automatic talkover and 1 guest microphone channel, both channels with gain control as well as 2-way tone control
  • 1 stereo effect way (send/return)
  • 2 master outputs, each with beat LED and 1 booth output
  • 1 record output
  • LED level display, switchable between both master outputs
  • Crossfader with assignment switches for channels 1-4 and cut switch function to suppress high frequencies, midrange and bass frequencies
  • Adjustable headphone output
  • Fader start for the stereo inputs (channels 1-4)
  • Connection for gooseneck light GNL-404 or GNL-405


No. of channels6
No. of inputs12
Mic input1.5 mV, 2 x 6.3 mm jack
Line input150 mV, 3 x RCA L/R
CD input150 mV, 3 x RCA L/R
Phono input3 mV, 2 x RCA L/R
Tape (play)-
Aux input-
Insert input-
Effect return135 mV, 1 x RCA L/R
Master output1 V/600 O, 1 x 3-pole XLR L/R
Record output300 mV/600 O, 1 x RCA L/R
Monitor output1 V/600 O, 1 x RCA L/R
Booth output-
Aux output-
Insert output-
Effect send300 mV/600 O, 1 x RCA L/R
Control room-
Tape (rec)-
Headphones? 8 O, 6.3 mm jack
Gooseneck lamp12 V/5 W, 4-pole XLR
WiFi-
USB-
Bluetooth-
Frequency range20-20,000 Hz
THD0.05%
S/N ratio> 50 dB
Crosstalk-
Equalizer bass+15 dB, -30 dB/50 Hz
Equalizer midrange+15 dB, -30 dB/1 kHz
Equalizer treble+15 dB, -30 dB/10 kHz
equalizer-
Talkover-12 dB, switchable
Phantom power-
Crossfaderyes
Media player-
Amplifier-
Power supply∿ 230 V/50 Hz/14 VA
Mains voltage∼ 230 V
Mains frequency50 Hz
Power consumption, operation14 VA
Operating voltage (possible alternative)-
Power supply (possible alternative)-
Admiss. ambient temp.0-40 °C
Width482 mm
Height266 mm
Depth110 mm
Rack spaces, RS6
Weight6.48 kg
