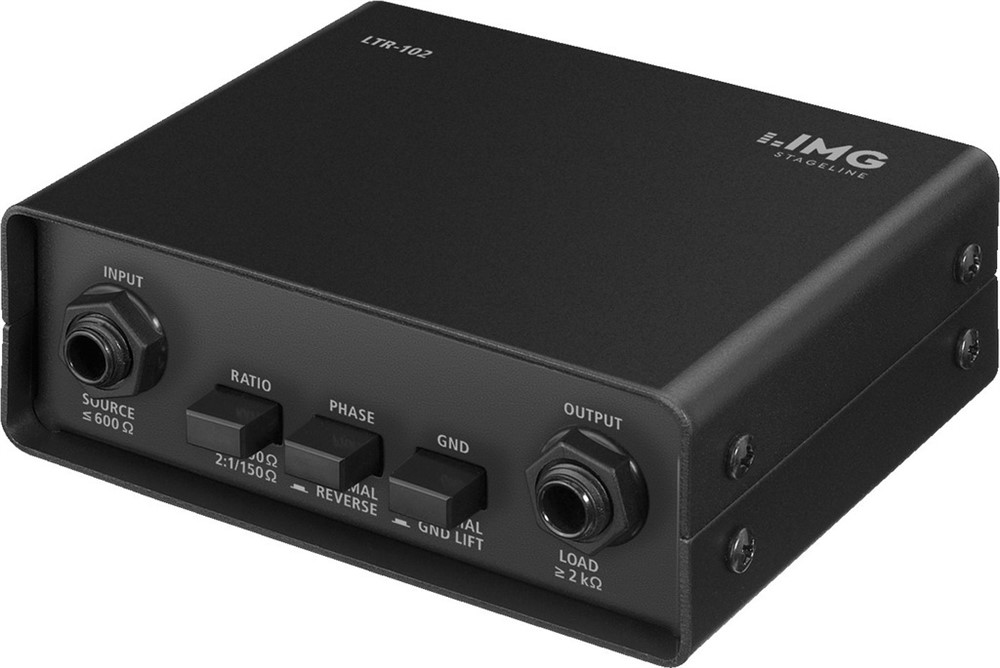

Line TransformersFor an optimum signal transmission from line units to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are DC separated.
All inputs and outputs can be used via 6.3mm jacks and XLR jacks, balanced as well as unbalanced.
- Balanced and unbalanced inputs and outputs
- Output impedance can be switched from 1:1/600 ohm to 2:1/150 ohm
- Phase can be switched from 0° to 180°
- Groundlift switch
- Wideband balancing transformer
- Robust metal housing
| Frequency range | 20-25,000Hz |
| Transformation ratio | 1:1/2:1 |
| Input impedance | 600 ohm |
| Output impedance | 600 ohm/150 ohm |
| Optimum source imped. | 50-600 ohm |
| Optimum load imped. | ? 2k ohm |
| Max. input voltage (1% THD/40Hz) | 5V |
| Dimensions | 120x44x90mm |
| Weight | 0.6kg |
| Inputs | 1 x 6.3mm jack, bal. 1 x XLR, bal. |
| Outputs | 1 x 6.3mm jack, bal. 1 x XLR, bal. |
