PEB-2618S

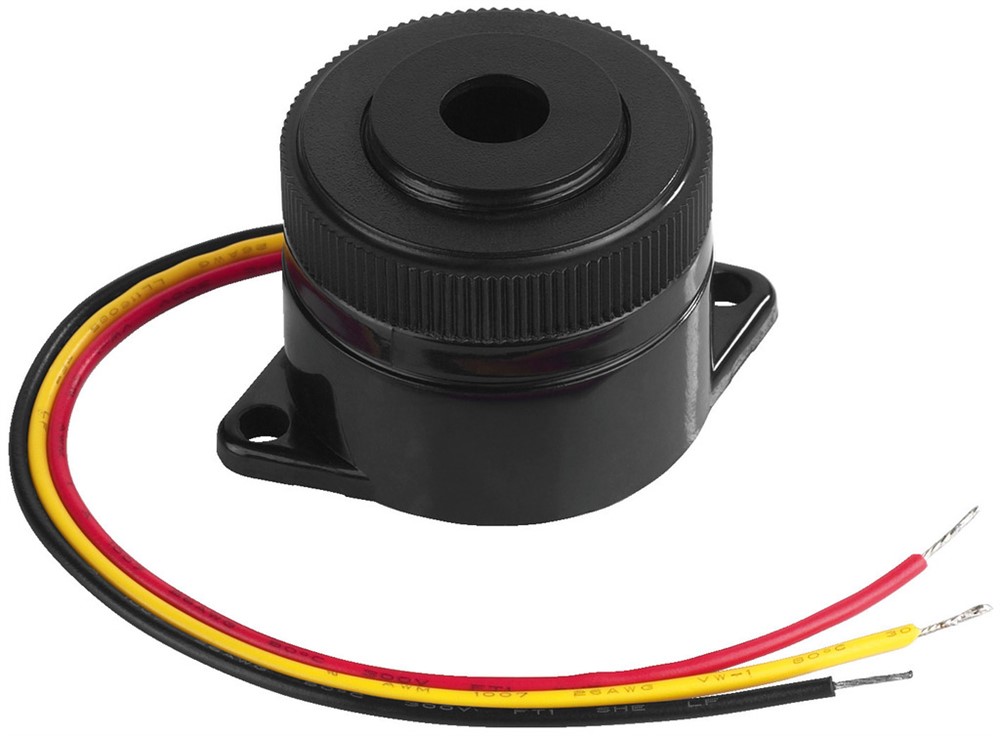

Piezo Buzzer, Ø29x24mm, 6-18V, 105dB
043260
In stock
Product question

What would you like to know about PEB-2618S?

Send

Description

Alarm piezo buzzer
  • Sound pressure: 105 dB/95 dB (30 cm distance)
  • 2,700Hz continuous or pulsed sound
  • Power supply: 12 V DC current /20 mA/15 mA
  • Voltage range: 6-18 V DC current
  • Single-hole mounting: Ø 18 mm
  • Hole distance: 34 mm
  • Ø 29 mm x 24 mm
  • Admissible ambient temperature: -20 °C to +60 °C


Descriptionalarm piezo buzzer
Alarm signalcontinuous sound, pulsed sound
Frequency2,700 Hz
Flash energy-
Sensitivity105 dB
Operating voltage-
Voltage rangeDC 6-18 V
Current consumption-
Housing-
Protective class-
Width29 mm
Height29 mm
Depth24 mm
Admiss. ambient temp.-20-+60 °C
Weight12 g
