MHD-55

24,6mm, 30Wrms, 8ohm
100240
In stock
Product question

What would you like to know about MHD-55?

Send

Description

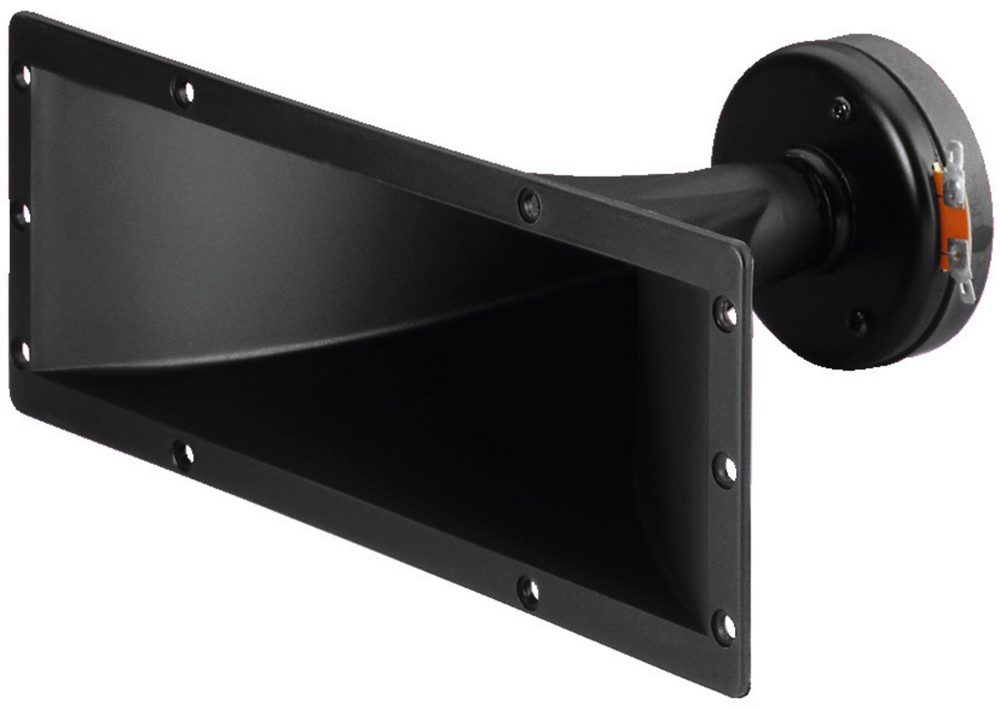

Horn tweeter, 8 ohm

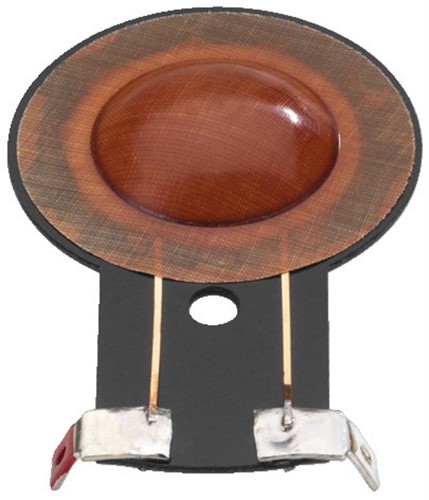

Plastic version, good efficiency and good full range reproduction, suitable for universal PA applications. Replacement voice coils are available (MHD-1255/VC).



Impedance (Z) 8 ohm

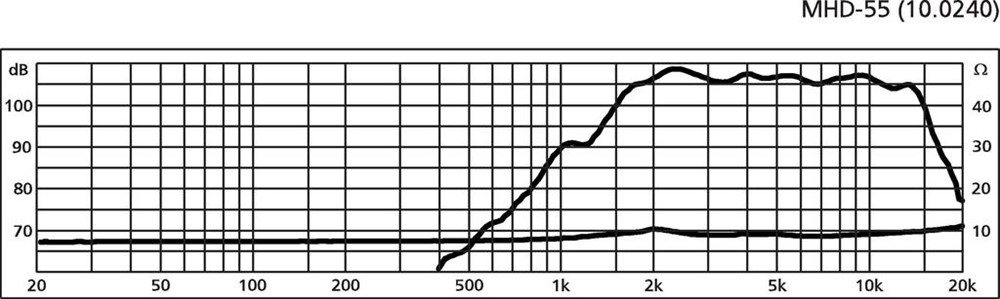

Resonant frequency (fs)2,000Hz
Max. frequency range fx-15kHz
Rec. crossov. frequ. (fmax.) (12dB/oct.)3,000Hz
Music power 55WMAX
Power rating (P) 30WRMS
SPL (1W/1m)103dB
Radiation angle (vert./hor.)45°/90°
Voice coil diameter25mm
Magnet diameter80mm

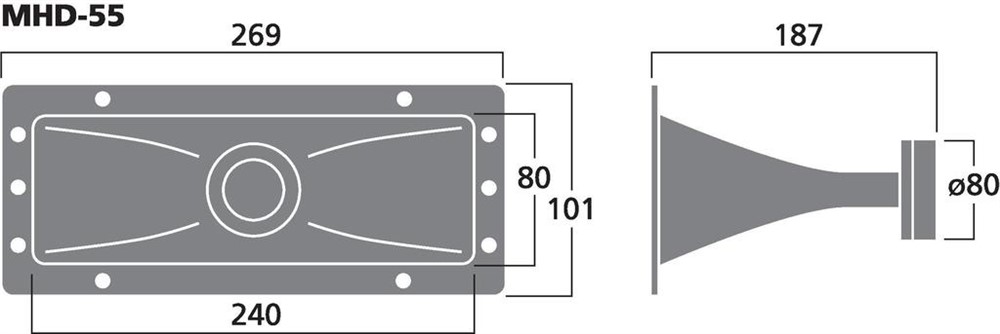

Mounting cutout 240x80mm
Mounting depth 187mm
Dimensions269x101mm
Weight 1.05kg
