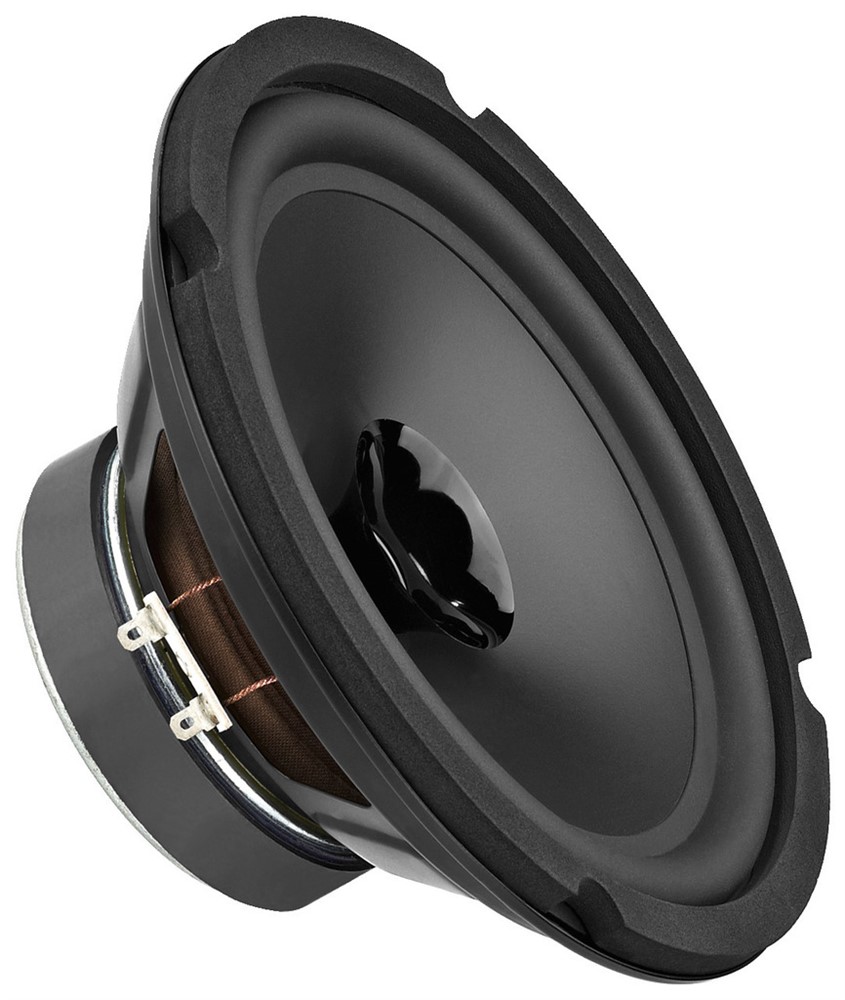

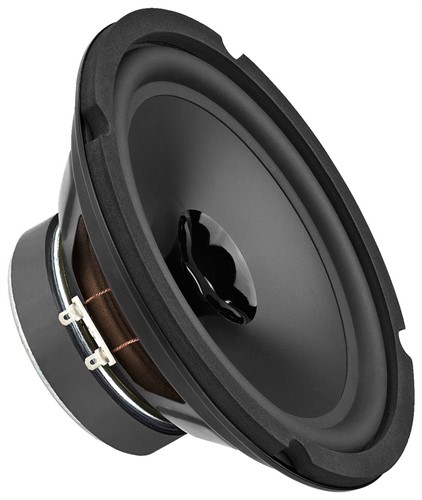

Hi-fi full range speaker, 100 WMAX, 50 WRMS, 8 Ohm
- Excellent sound quality
- Very wide frequency range, slightly rising towards the high frequencies
- Low-resonance and weatherproof polypropylene cone with rubber surround
- Very good bass reproduction
- Ideally suited for the application in closed cabinets
Klang+Ton 02/2013
"Classical results in a modern design - an exciting full range speaker. WP actually stands for waterproof. Thus, a speaker suitable for outdoor applications. In the measuring section, the SPX-200WP astonishingly provides a performance exactly like some of my favourite full range speakers."
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |

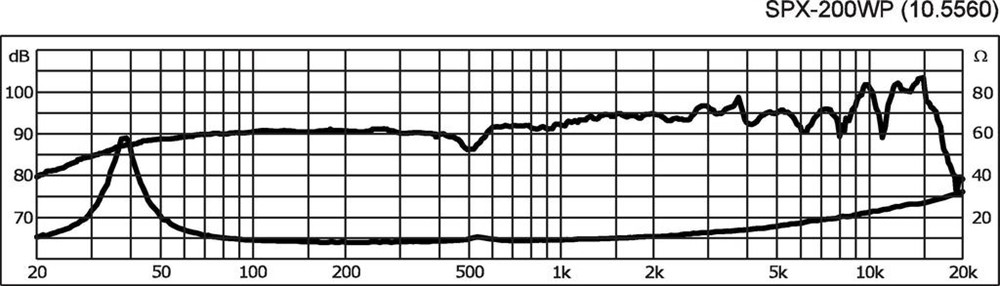

| Frequency range |
f3-18,000 Hz |
| Resonant frequency (fs) |
36 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
50 W |
| Peak music power output (MAX) |
100 W |
| Sensitivity |
89 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
0.95 mm/N |
| Moving mass (Mms) |
19.7 g |
| Mech. Q factor (Qms) |
4.18 |
| Electr. Q factor (Qes) |
0.69 |
| Total Q factor (Qts) |
0.59 |
| Equivalent volume (Vas) |
60.5 l |
| DC resistance (Re) |
7.6 O |
| Force factor (BxL) |
6.79 Tm |
| Voice coil induct. (Le) |
0.35 mH |
| Voice coil diameter |
Ø 25 mm |
| Voice coil former |
Kapton |
| Linear excursion (XMAX) |
± 2 mm |
| Eff. cone area (Sd) |
213 cm2 |
| Magnet weight |
564 g |
| Magnet diameter |
Ø 96 mm |
| Mounting cutout |
Ø 180 mm |
| Mounting depth |
78.5 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |

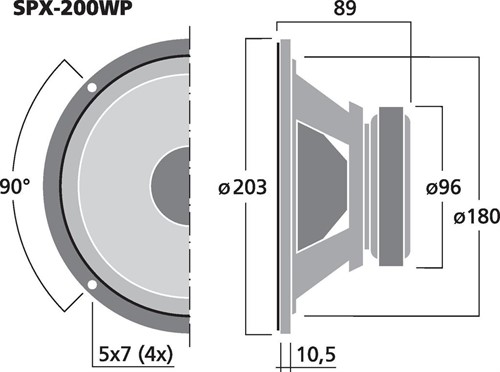

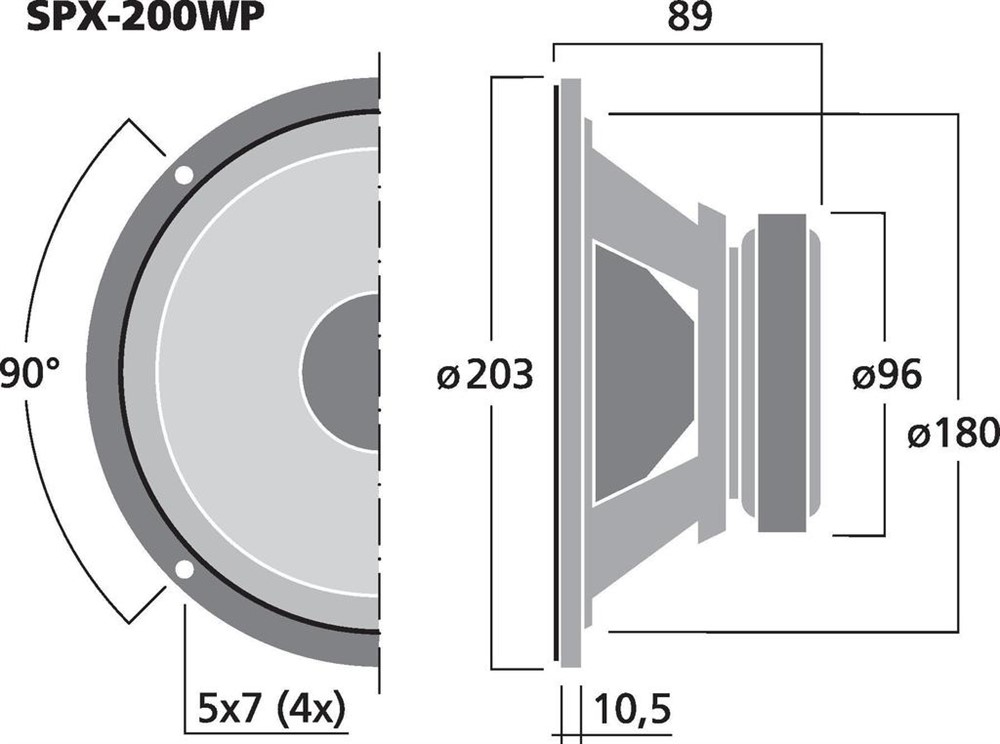

| Dimensions |
Ø 203 mm x 89 mm |
| Outside diameter |
Ø 203 mm |
| Width |
Ø 203 mm |
| Height |
- |
| Depth |
99 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
1.32 kg |
| Packing unit |
1 |
| Type of speaker |
8" |
