SP-300P

12", 100Wrms, 8ohm
100570
In stock
Product question

What would you like to know about SP-300P?

Send

Description

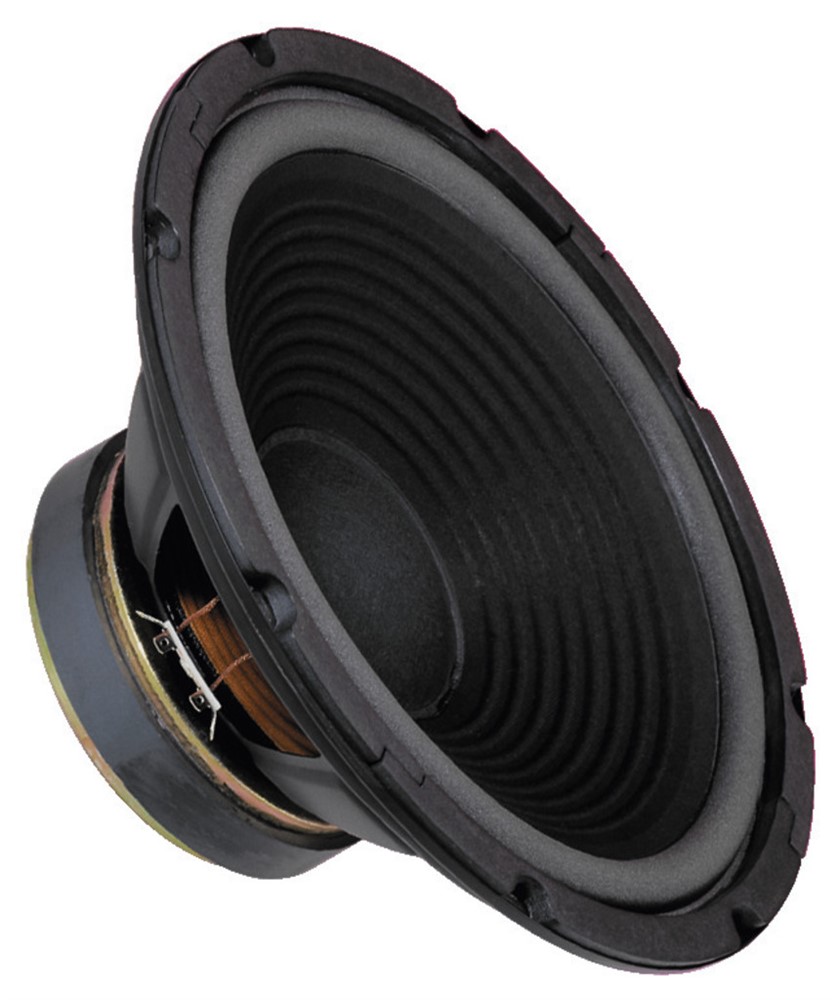

Bass speaker, 200WMAX, 8 ohm

With drilled pole core and stable paper cone for bass reproduction of high power rating for universal applications.


Impedance (Z) 8 ohm
Resonant frequency (fs)30Hz
Max. frequency range f3-4,000Hz
Music power 200WMAX
Power rating (P) 100WRMS
SPL (1W/1m) 96dB
Suspension compl. (Cms)0.77mm/N
Moving mass (Mms)42g
Mech. Q factor (Qms)1.74
Electr. Q factor (Qes)0.37
Total Q factor (Qts)0.31
Equivalent volume (Vas)266 l
DC resistance (Re)6.5 ohm
Force factor (BxL)11.7Tm
Voice coil induct. (Le)0.8mH
Voice coil diameter50mm
Voice coil formeraluminium
Linear excursion (XMAX)±2.5mm
Eff. cone area (Sd)495cm2
Magnet weight 42oz.
Weight 4.1kg
