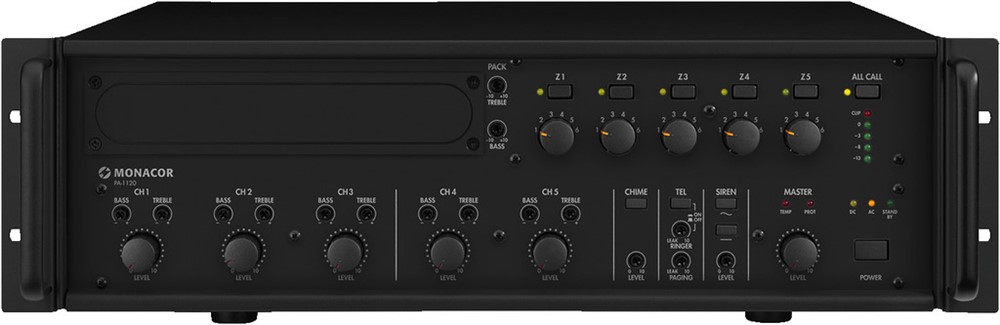

PA-1120

120W, 5-Zoner, 3HE

170780

In stock

Product question

What would you like to know about PA-1120?

Your name*

Your e-mail*

Question

Send

Description
Links

Description

5-zone mono PA mixing amplifiers

1 x 120W_RMS (PA-1120)
1 x 240W_RMS (PA-1240)
5 zones, can be controlled individually
Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
Bass, treble and master controls, level display via LEDs, controlled fan
Insertions for various functions are available at option
Phantom power for electret microphones
Connection for microphones PA-1120RC and 1 x PA-1120PTT
Automatic alarm announcement with insertion PA-1120DM (available at option)
Mains operation and 24V emergency power operation

100V

General Information
Output power	120W_RMS
	170W_MAX
Inputs
Mic/line 1-3	2.5mV/5k ohm, 0.3V/5k ohm
Line 4-5	0.3V/15k ohm
Preamplifier	0.775V/10k ohm
Outputs
Speakers	100V/70V
Preamplifier	0.775V/100 ohm
Record	0.775V/3k ohm
Frequency range	55-16,000Hz
Tone control
Bass	±10dB/100Hz
Treble	±10dB/10kHz
S/N ratio
Mic	> 70dB, A-weighted
Line	> 80dB, A-weighted
THD	<1%
Admiss. ambient temp.	0-40 °C
Power supply	230V˜/50Hz/340VA,
	24V DC current /15A
Dimensions	482x133x352mm, 3RS
Weight	13kg

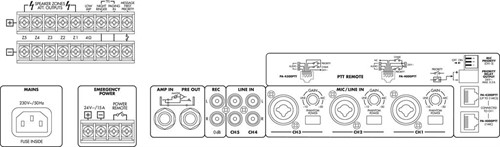

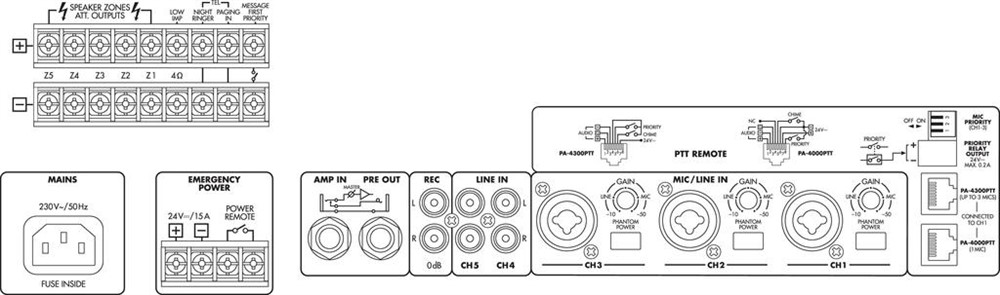

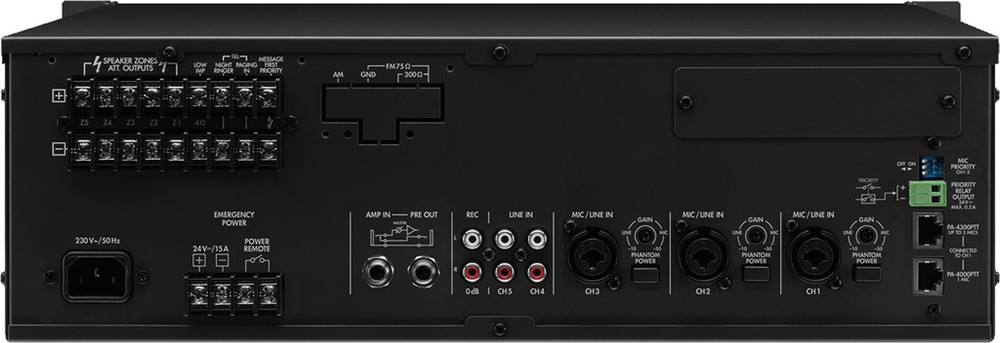

Inputs
Mic/line	3 x 6.3mm/XLR (Combo)
Line	2 x RCA L/R
Zone paging microphone	2 x RJ45
Push-to-talk microphone	1 x 7-pole DIN
Telephone system	screw terminals
Ext. amplifier	1 x 6.3mm jack
Outputs
Mom. push-button for chime	-
1 x preamplifier	1 x 6.3mm jack
Speakers	screw terminals
Record	1 x RCA L/R
Power supply
230V˜	3-pin IEC jack
24V DC current	screw terminals
