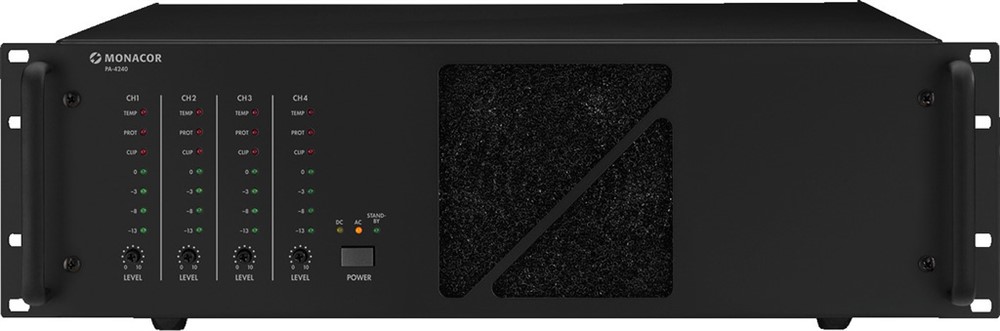

PA power amplifiers - 4 x 240WRMS (PA-4240)
- 4 x 120WRMS (PA-4120)
- Routing switches for parallel operation on 2 channels each
- Temperature-controlled fan
- Connection for external on/off switch
- LED display for clip, protect, excess temperature and output level
- Mains operation or 24V emergency power operation
100V PROSOUND 06/2000 (PA-4240)
In a way, the PA-4240 from MONACOR is the workhorse of the classic PA technology ..."
| Output power | 4 x 240WRMS |
| Input sensitivity | 1.2V, bal. |
| Output impedance | 31V/4 ohm, 50V/10.4 ohm, 70V/20 ohm, 100V/42 ohm |
| Frequency range | 55-17,000Hz, -3dB |
| S/N ratio | > 90dB, A-weighted |
| THD | <1% |
| High-pass filter | |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | 230V˜/50Hz/2,720VA, 24V DC current /113A |
| Dimensions | 483x133x370mm, 3RS |
| Weight | 28kg |
| Connections | |
| Signal input | 4 x XLR |
| Speaker output | screw terminals |
| Other features | |
